Engine Control (1GR-FE): Notes

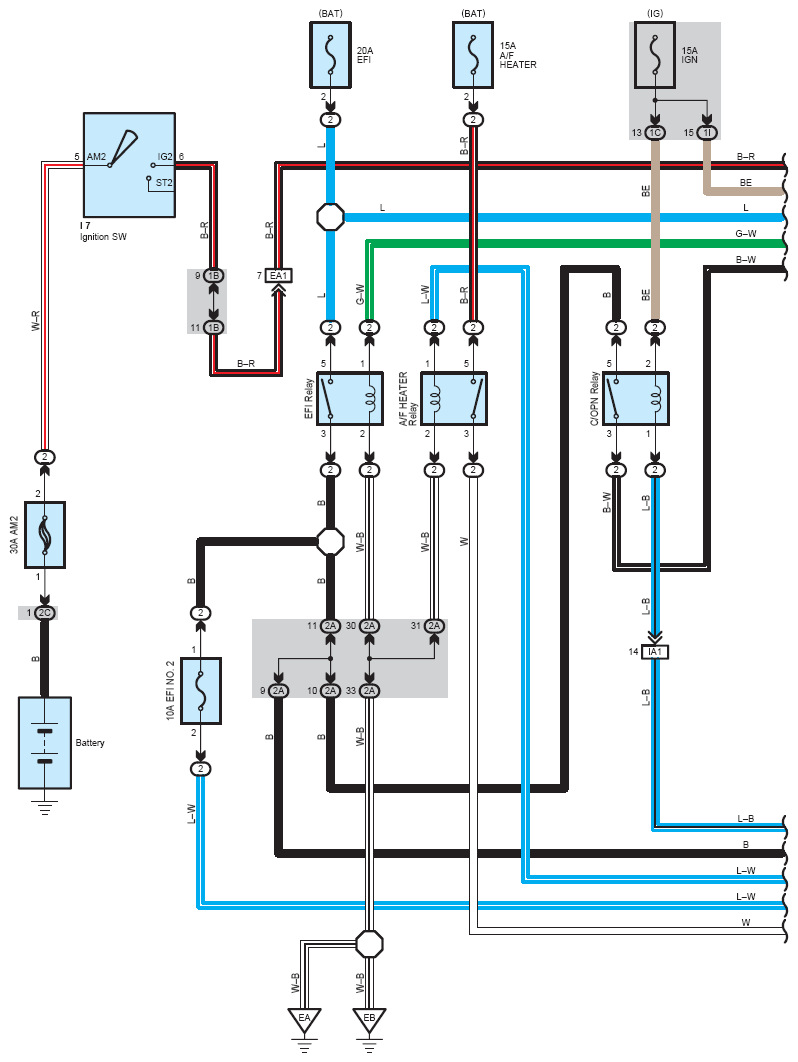

Fig 1: Engine Control (1GR-FE) System Wiring Diagram (1 Of 9)
G07117202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

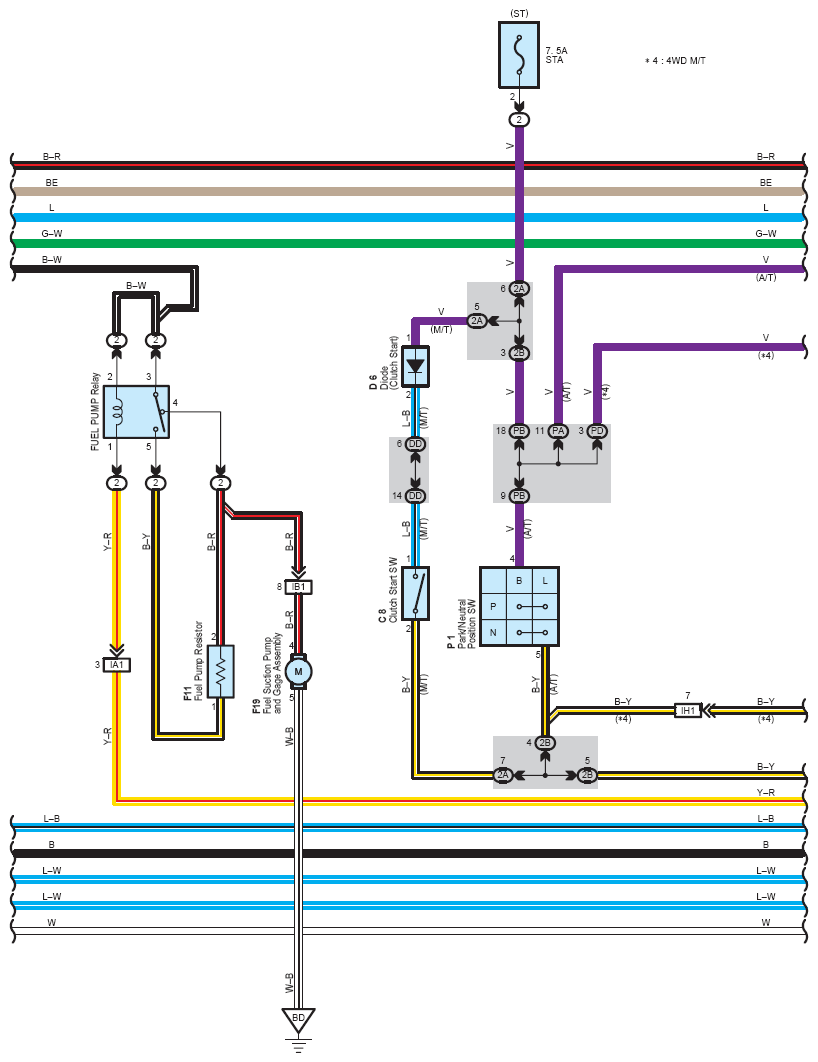

Fig 2: Engine Control (1GR-FE) System Wiring Diagram (2 Of 9)
G07117203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Engine Control (1GR-FE) System Wiring Diagram (3 Of 9)
G07117204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

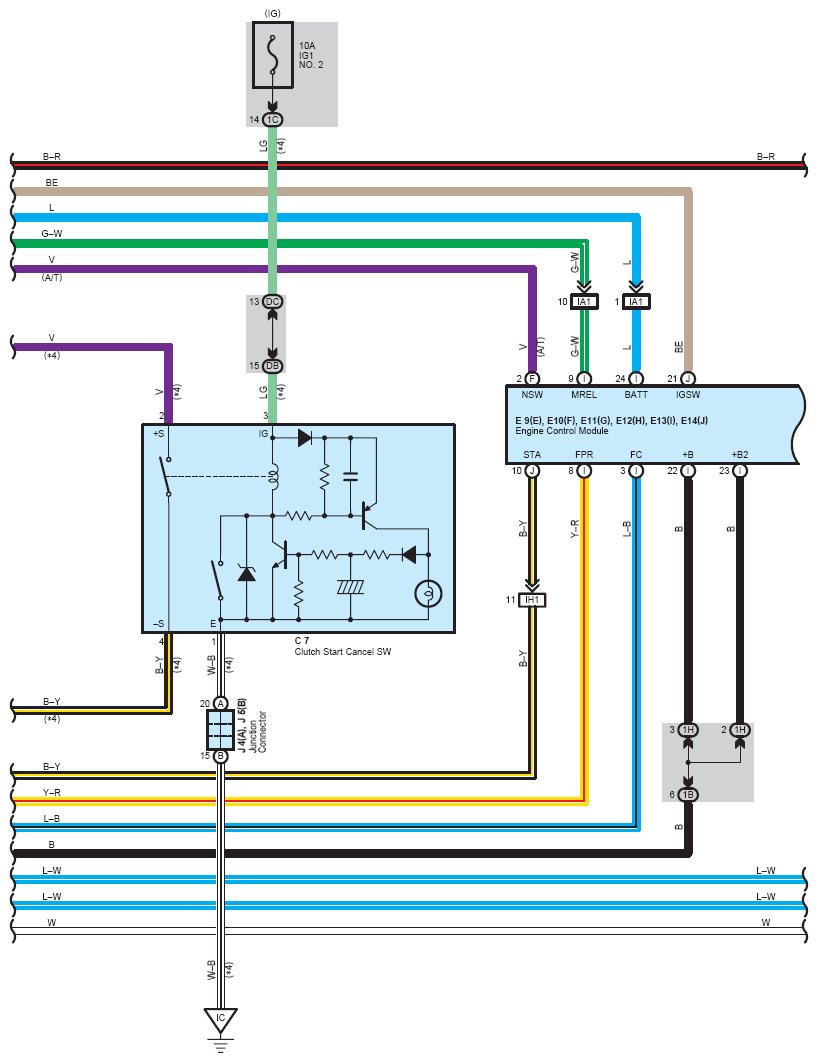

Fig 4: Engine Control (1GR-FE) System Wiring Diagram (4 Of 9)
G07117205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

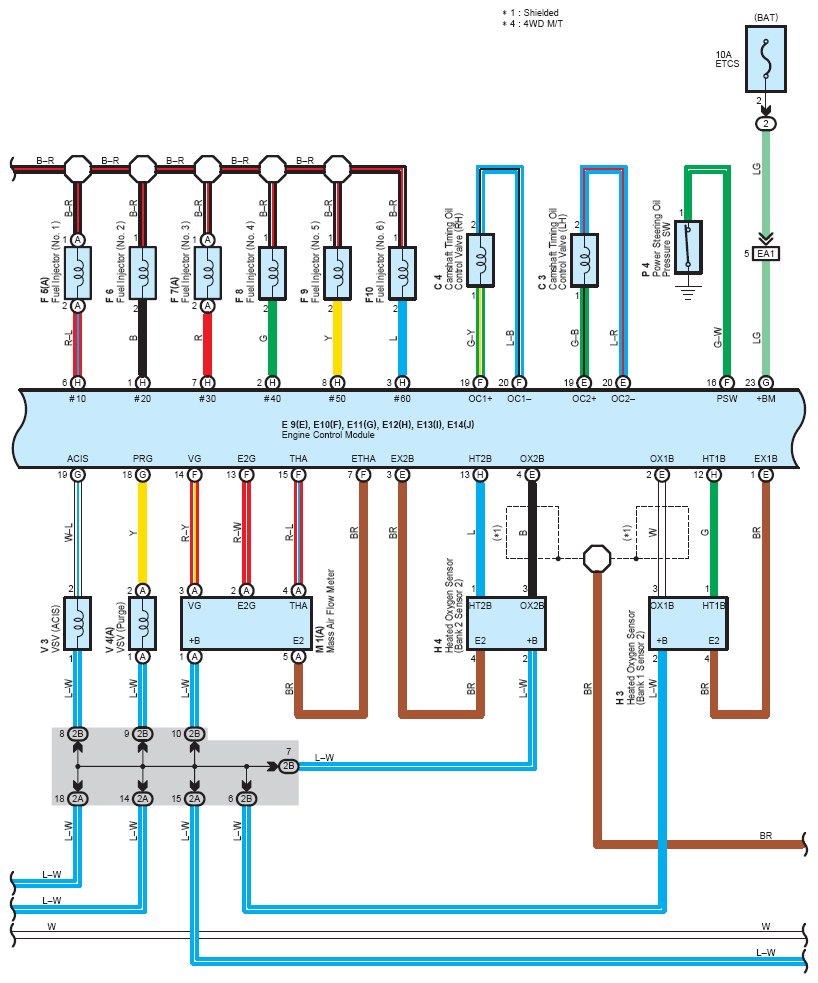

Fig 5: Engine Control (1GR-FE) System Wiring Diagram (5 Of 9)
G07117206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

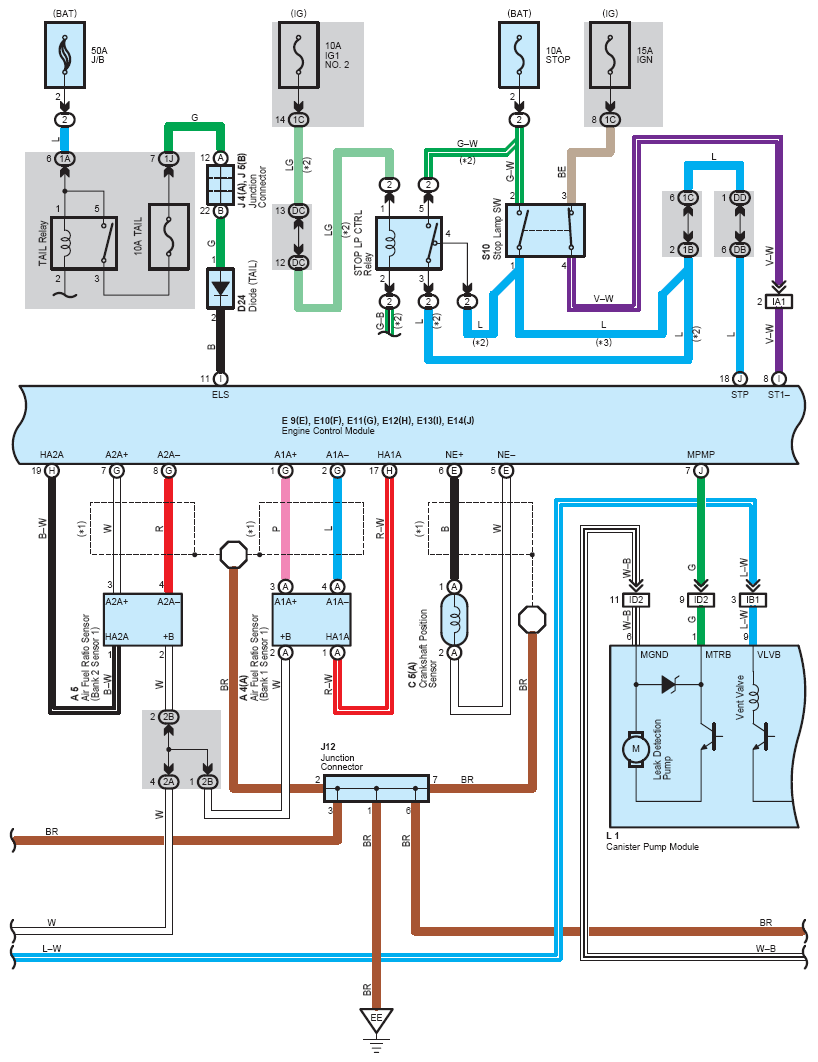

Fig 6: Engine Control (1GR-FE) System Wiring Diagram (6 Of 9)
G07117207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

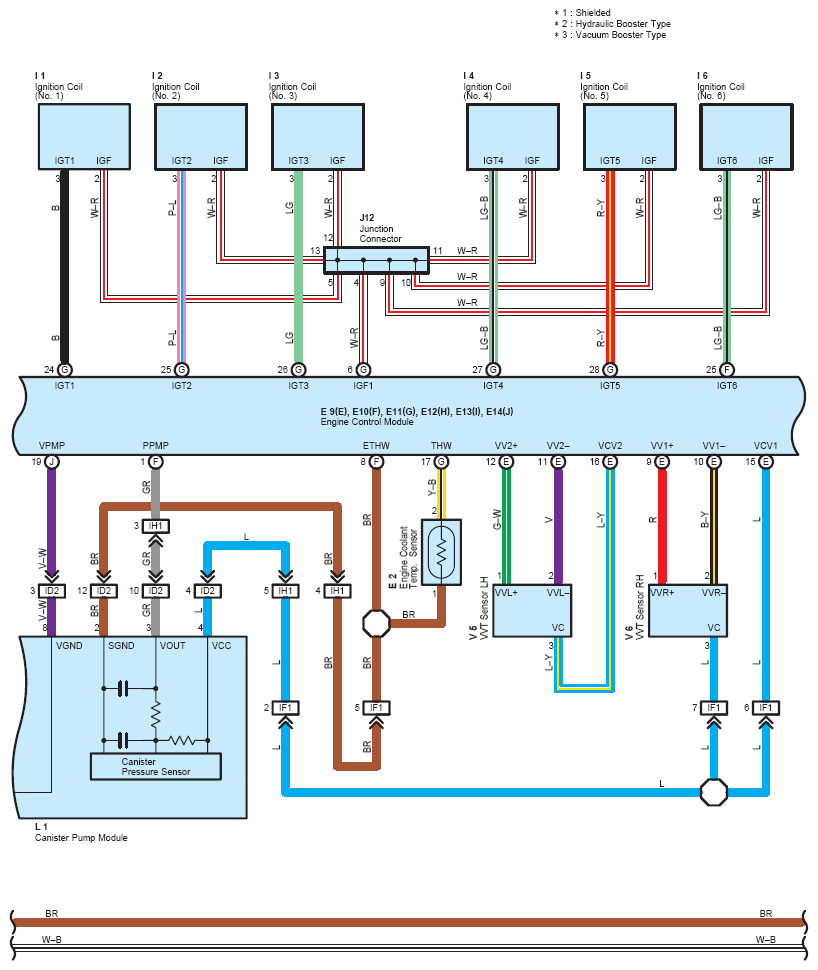

Fig 7: Engine Control (1GR-FE) System Wiring Diagram (7 Of 9)
G07117208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

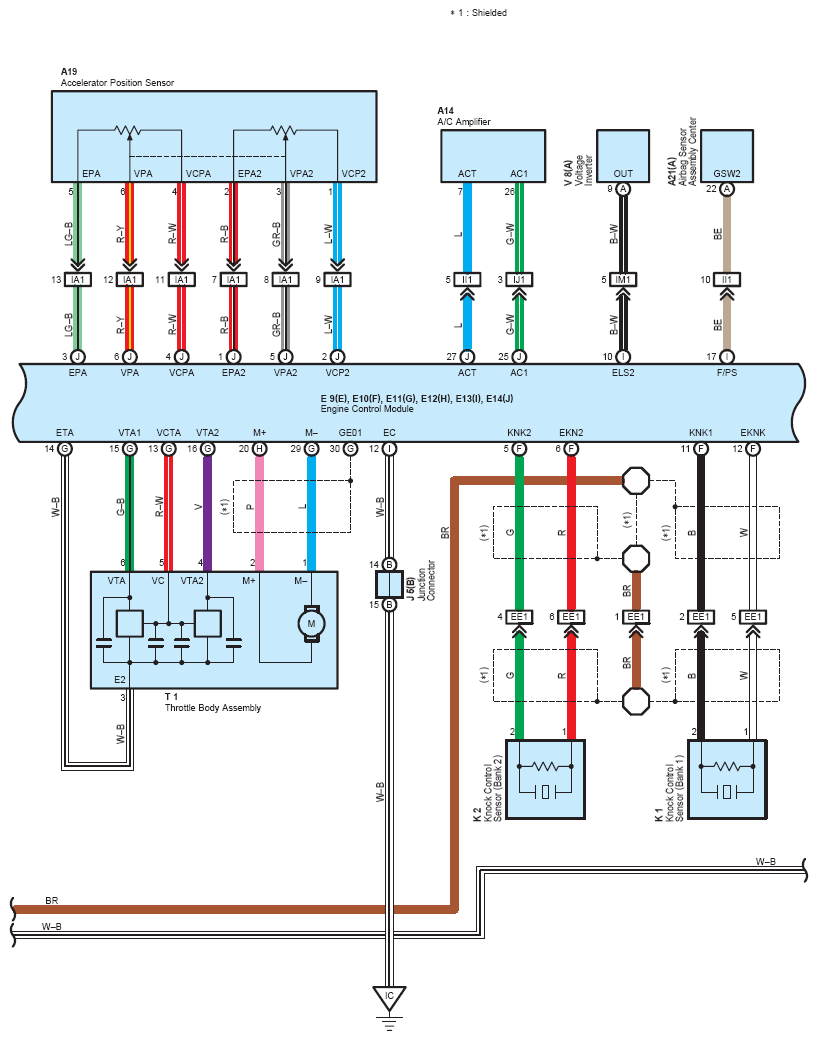

Fig 8: Engine Control (1GR-FE) System Wiring Diagram (8 Of 9)
G07117209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

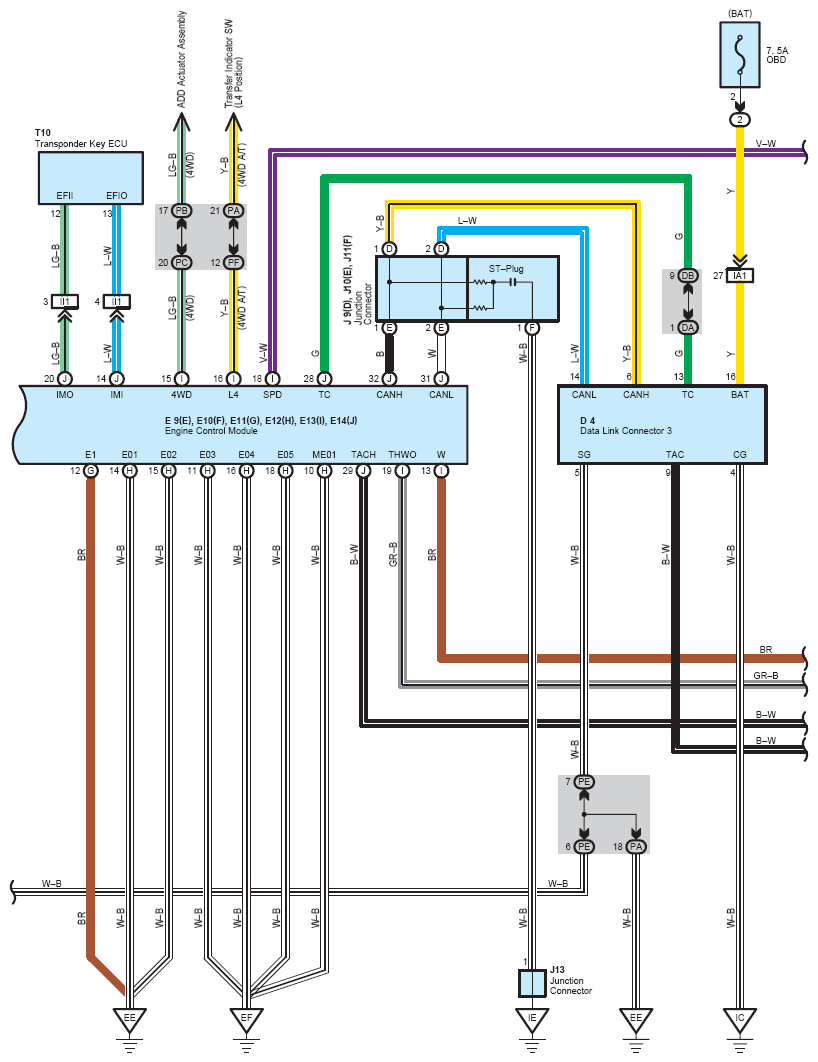

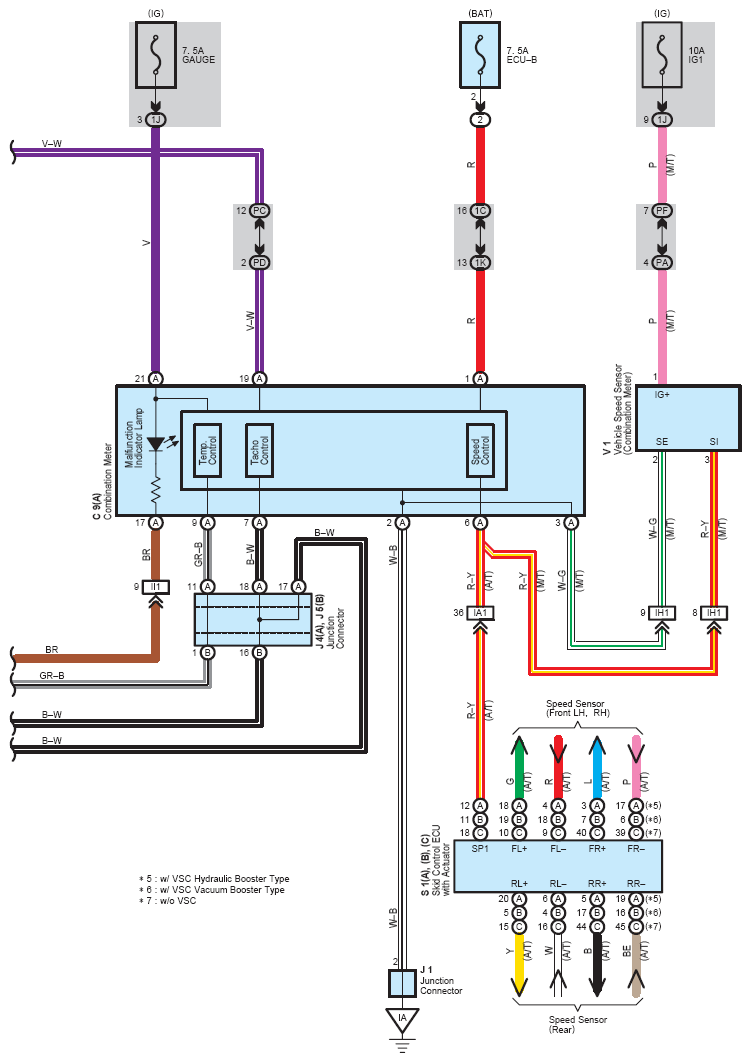

Fig 9: Engine Control (1GR-FE) System Wiring Diagram (9 Of 9)
G07117210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
