Shift Lock (Column Shift): Notes

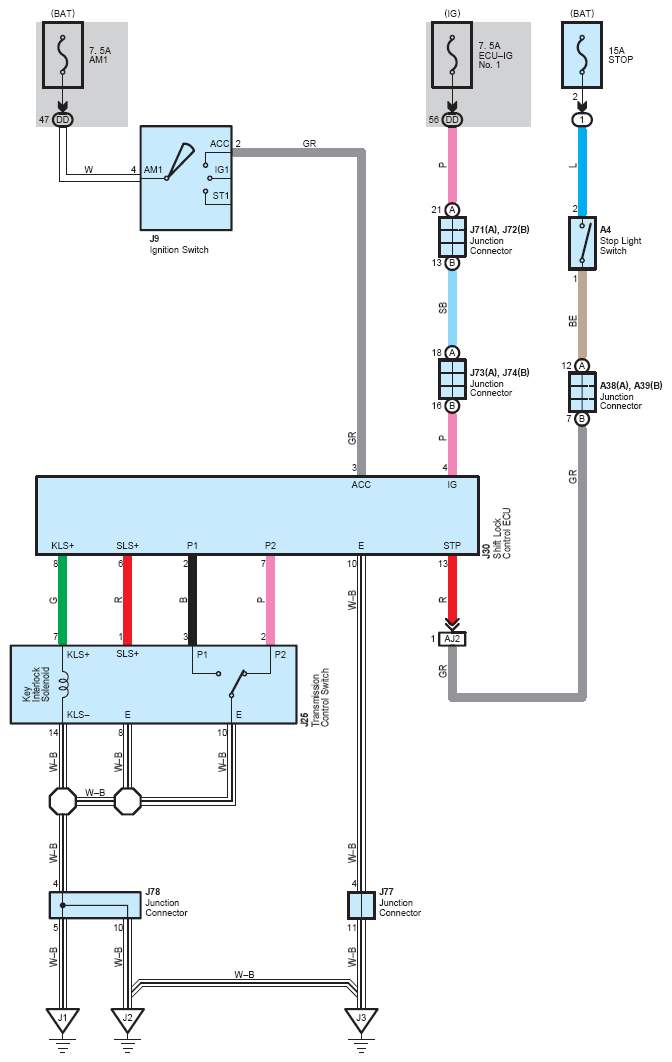

Fig 1: Shift Lock (Column Shift) System Wiring Diagram
G07123719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
