Emission Control System (Service Information): Canister: Installation: Installation

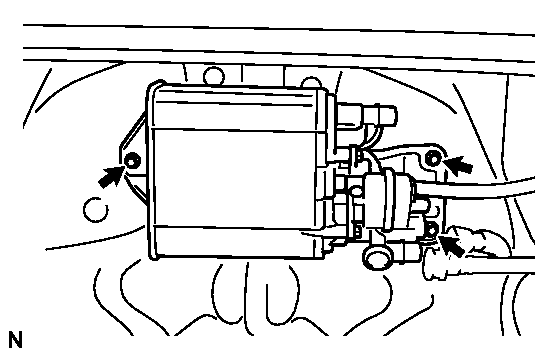

Fig 1: Locating Canister Assembly Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the canister with the 3 bolts.

   Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

2. Connect the vent line hose to the canister.

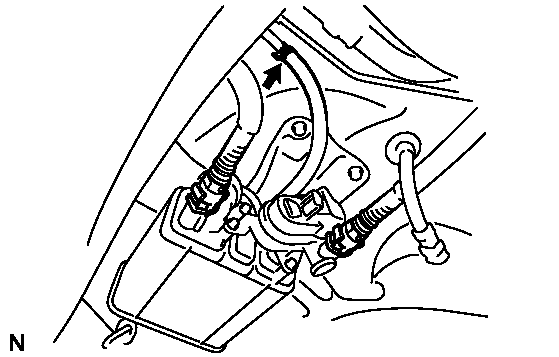

   Fig 2: Locating Vent Line Hose

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the air inlet line hose to the leak detection pump.
4. Connect the purge line hose.
5. Connect the connector.

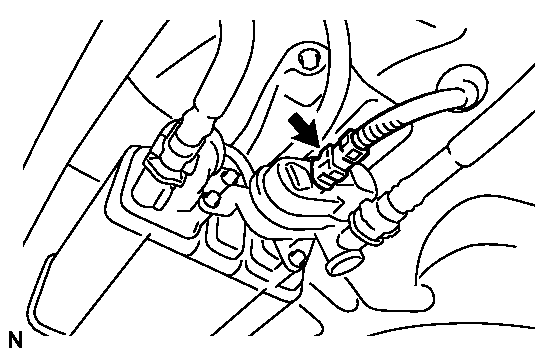

   Fig 3: Locating Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
