Terminals Of ECM

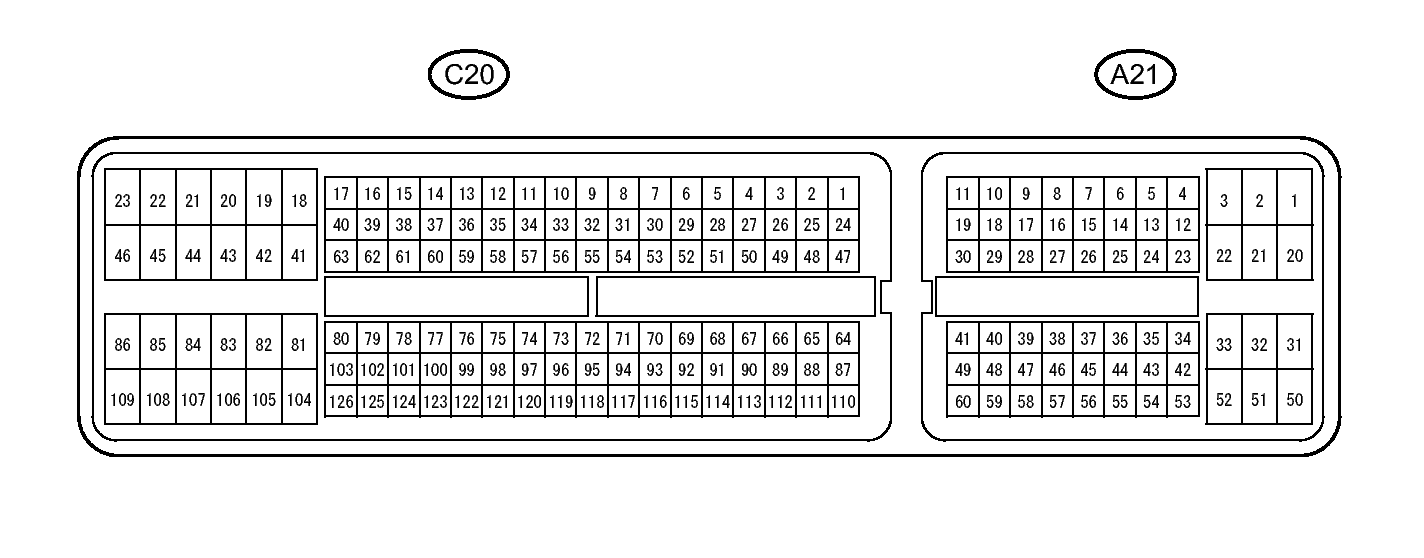

Fig 1: ECM Connector Terminal Identification - SFI System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The standard normal voltage between each pair of ECM terminals is shown in the table below. The appropriate conditions for checking each pair of terminals are also indicated. The result of checks should be compared with the standard normal voltage for that pair of terminals, displayed in the Specified Condition column. The illustration above can be used as a reference to identify the ECM terminal locations.

HINT:

*: The ECM terminal voltage is constant regardless of the output voltage from the sensor.

1. WAVEFORM 1

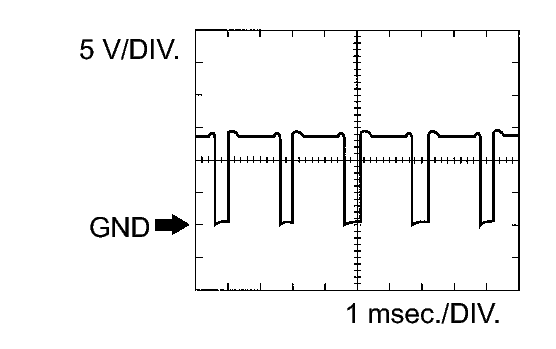

   Fig 2: Identifying Waveform 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAMSHAFT TIMING OIL CONTROL VALVE (OCV)



   ECM Terminal Names	Between OC1+ and OC1-
   Tester Ranges	5 V/DIV, 1 msec./DIV
   Conditions	Idling

2. WAVEFORM 2

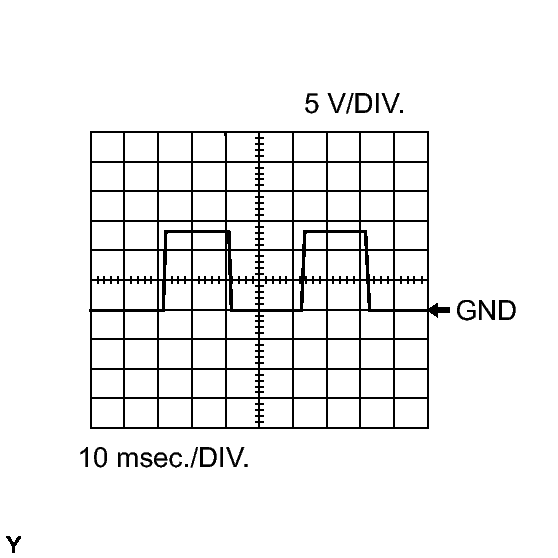

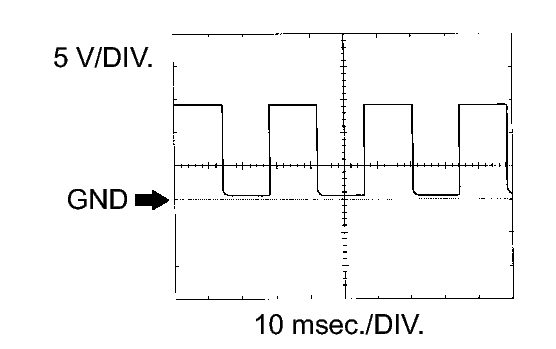

   Fig 3: Identifying Waveform 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   AIR-FUEL RATIO SENSOR HEATER



   ECM Terminal Names	Between HA1A and E04
   Tester Ranges	5 V/DIV, 10 msec./DIV
   Conditions	Idling with warm engine

   HINT:

   The wavelength varies in accordance with the engine operating condition.

3. WAVEFORM 3
   Fig 4: Identifying Waveform 3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   HEATED OXYGEN SENSOR



   ECM Terminal Names	Between OX1B and EX1B
   Tester Ranges	0.2 V/DIV, 200 msec./DIV
   Conditions	Engine speed maintained at 2500 rpm for 2 minutes after warming up sensor

   HINT:

   In DATA LIST, item O2S B1S2 shows the ECM input values from the heated oxygen sensor.

4. WAVEFORM 4

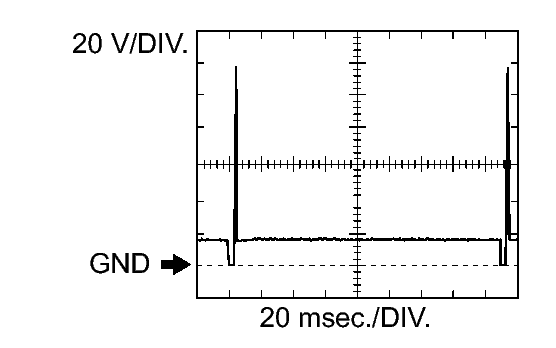

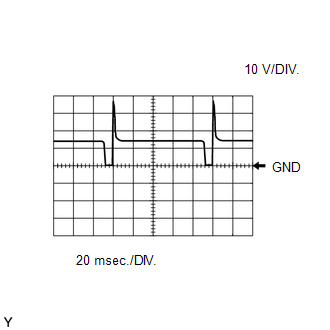

   Fig 5: Identifying Waveform 4

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   FUEL INJECTOR NO. 1 (TO NO. 4) INJECTION SIGNAL



   ECM Terminal Names	Between #10 (to #40) and E01
   Tester Ranges	20 V/DIV, 20 msec./DIV
   Conditions	Idling

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

5. WAVEFORM 5

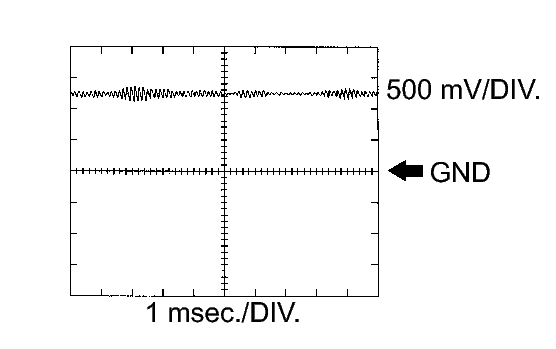

   Fig 6: Identifying Waveform 5

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   KNOCK SENSOR



   ECM Terminal Names	Between KNK1 and EKNK
   Tester Ranges	500 mV/DIV, 1 msec./DIV
   Conditions	Engine speed maintained at 4000 rpm after warming up engine

   HINT:

   • The waveforms and amplitudes displayed differ slightly depending on the vehicle.
6. WAVEFORM 6

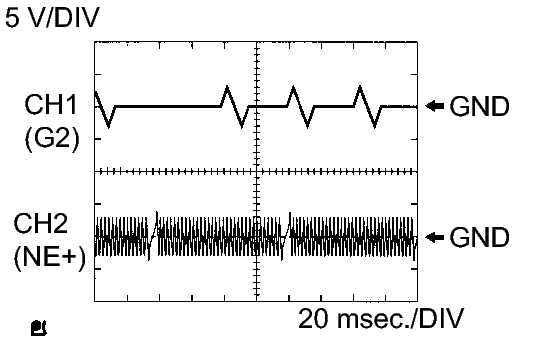

   Fig 7: Identifying Waveform 6

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CRANKSHAFT POSITION SENSOR AND CAMSHAFT POSITION SENSOR



   ECM Terminal Names	CH1: Between G2+ and NE- CH2: Between NE+ and NE-
   Tester Ranges	5 V/DIV, 20 msec./DIV
   Conditions	Idling

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

7. WAVEFORM 7

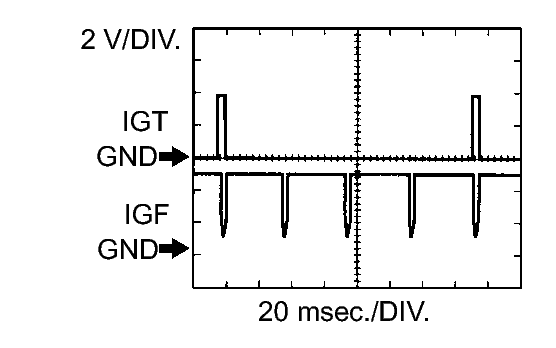

   Fig 8: Identifying Waveform 7

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   IGNITER IGT SIGNAL (FROM ECM TO IGNITER) AND IGNITER IGF SIGNAL (FROM IGNITER TO ECM)



   ECM Terminal Names	Between IGT (1 to 4) and E1 Between IGF1 and E1
   Tester Ranges	2 V/DIV, 20 msec./DIV
   Conditions	Idling

   HINT:

   The wavelength becomes shorter as the engine rpm increases.

8. WAVEFORM 8
   Fig 9: Identifying Waveform 8

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   PURGE VSV



   ECM Terminal Names	Between PRG and E01
   Tester Ranges	10 V/DIV, 20 msec./DIV
   Conditions	Idling, during purge control

   HINT:

   If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.

9. WAVEFORM 9

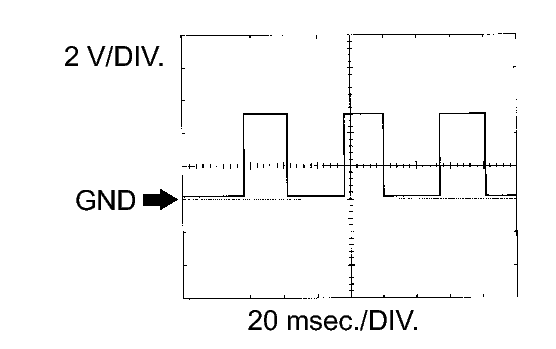

   Fig 10: Identifying Waveform 9

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   VEHICLE SPEED SIGNAL



   ECM Terminal Names	Between SPD and E1
   Tester Ranges	2 V/DIV, 20 msec./DIV
   Conditions	Driving at 20 km/h (12 mph)

   HINT:

   The wavelength becomes shorter as the vehicle speed increases.

10. WAVEFORM 10

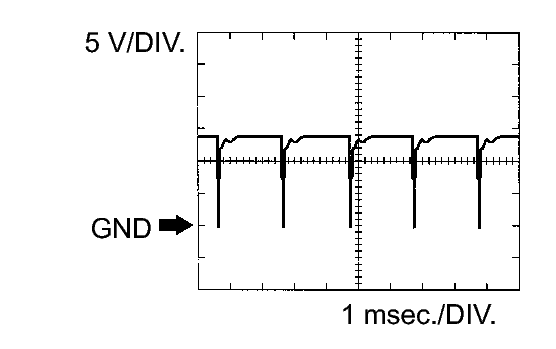

    Fig 11: Identifying Waveform 10

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR POSITIVE TERMINAL



    ECM Terminal Names	Between M+ and ME01
    Tester Ranges	5 V/DIV, 1 msec./DIV
    Conditions	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

11. WAVEFORM 11
    Fig 12: Identifying Waveform 11

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR NEGATIVE TERMINAL



    ECM Terminal Names	Between M- and ME01
    Tester Ranges	5 V/DIV, 1 msec./DIV
    Conditions	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

12. WAVEFORM 12
    Fig 13: Identifying Waveform 12

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE SPEED SIGNAL



    ECM Terminal Names	Between TACH and E1
    Tester Ranges	5 V/DIV, 10 msec./DIV
    Conditions	Idling

    HINT:

    The wavelength becomes shorter as the engine rpm increases.

13. WAVEFORM 13
    Fig 14: Identifying Waveform 13

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    REFERENCE: CAN COMMUNICATION SIGNAL



    ECM Terminal Names	Between CANH and E1
    Tester Ranges	1 V/DIV, 10 μsec./DIV.
    Conditions	Engine stops and ignition switch ON

    HINT:

    The waveform varies depending on the CAN communication signal.

14. WAVEFORM 14
    Fig 15: Identifying Waveform 14

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    REFERENCE: CAN COMMUNICATION SIGNAL



    ECM Terminal Names	Between CANL and E1
    Tester Ranges	1 V/DIV, 10 μsec./DIV.
    Conditions	Engine stops and ignition switch ON

    HINT:

    The waveform varies depending on the CAN communication signal.
