PCV Valve: Installation: Installation

INSTALL POSITIVE CRANKCASE VENTILATION VALVE (PCV VALVE)

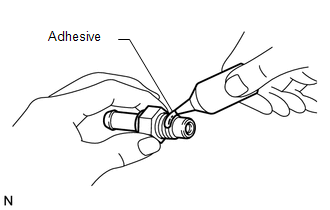

Fig 1: Applying Adhesive To Threads Of Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the positive crankcase ventilation valve (PCV valve).
  1. Apply adhesive to the end 2 or 3 threads of the bolt.
    Adhesive

    Toyota Genuine Adhesive 1324, Three Bond 1324 or the equivalent.
  2. Install the positive crankcase ventilation valve (PCV valve).

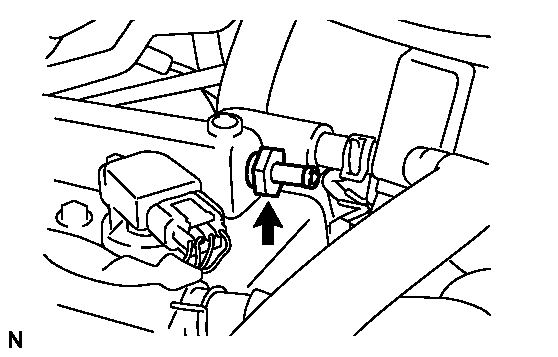

    Fig 2: Locating Positive Crankcase Ventilation Valve
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 27 N*m (275 kgf*cm, 20 ft.*lbf)
CONNECT VENTILATION HOSE

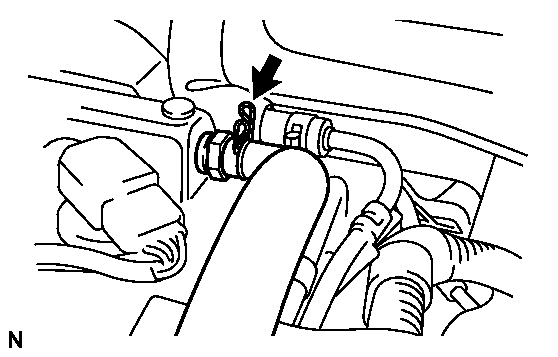

Fig 3: Locating Ventilation Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CYLINDER HEAD COVER NO. 2 . Refer to INSTALLATION - Step 3
