Operation Check
- CHECK INNER REAR VIEW MIRROR
- Turn the ignition switch to ON.
- Move the shift lever to R.
- Check that the rear camera display in the inner rear view mirror assembly displays the rear view monitor image.
HINT:
If the amber LED light is illuminated on the inner rear view mirror assembly with the ignition switch ON and the shift lever in R, this indicates that the monitor image has been canceled manually. Check if the image is displayed by pressing the display on/off button.

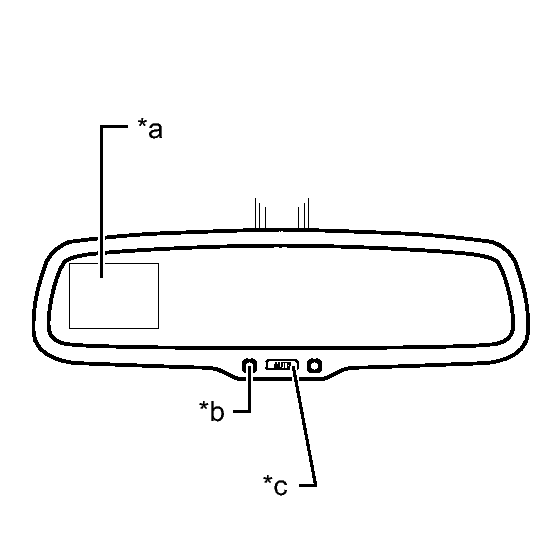

TEXT IN ILLUSTRATION*a Rear Camera Display *b LED Indicator *c Display On/Off Button
