ID Code Box Power Source Circuit: Procedure

CHECK HARNESS AND CONNECTOR (ID CODE BOX - BATTERY AND BODY GROUND)

Disconnect the F72 box connector.

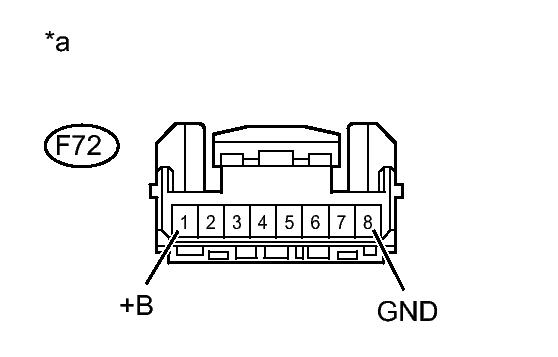

Fig 1: Identifying F72 Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the voltage according to the value(s) in the table below.

Standard Voltage

Tester Connection	Condition	Specified Condition
F72-1 (+B) - Body ground	Always	11 to 14 V

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
F72-8 (GND) - Body ground	Always	Below 1 Ω

TEXT IN ILLUSTRATION

*a	Front view of wire harness connector (to ID Code Box)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step 2

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
