Display Signal Circuit between Inner Rear View Mirror Assembly and Television Camera Assembly: Wiring Diagram

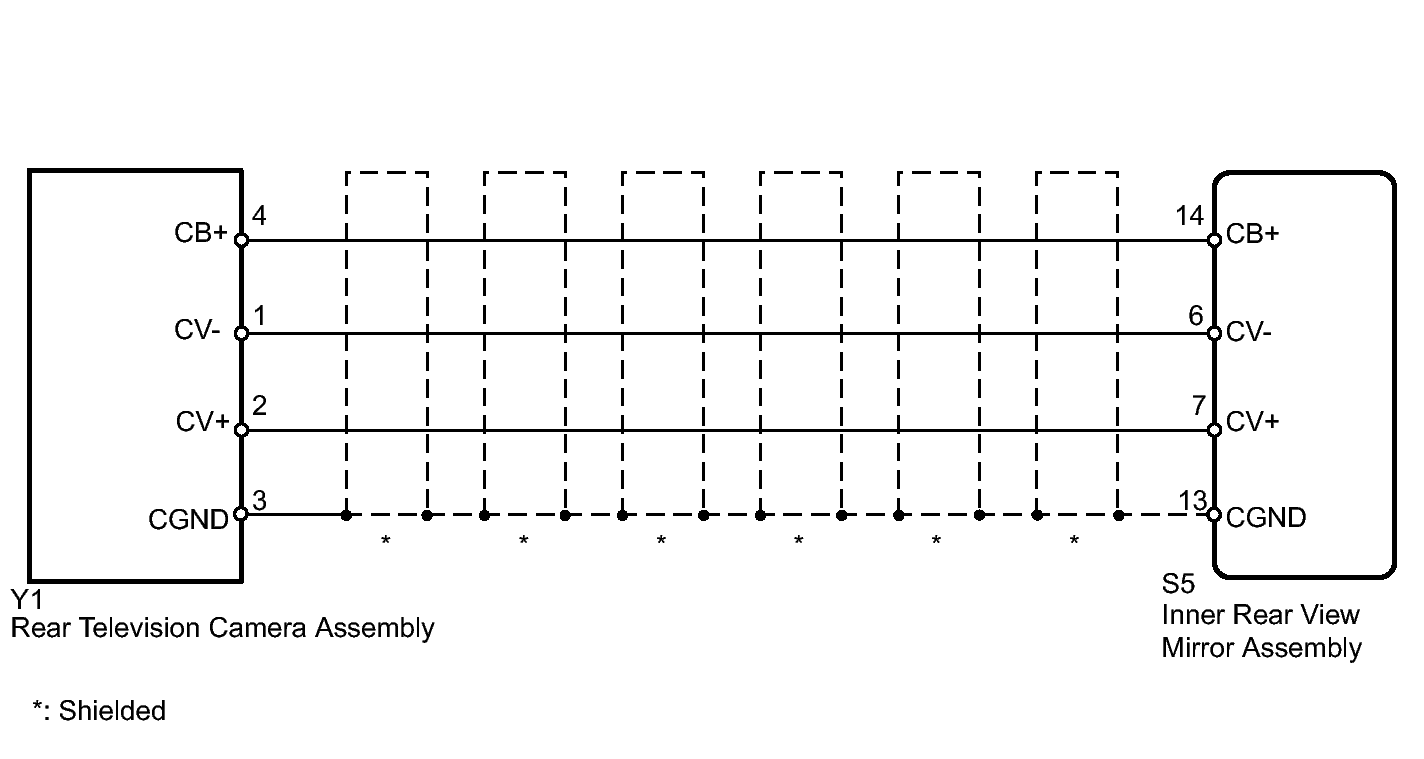

Fig 1: Identifying Rear View Mirror Assembly & Television Camera Assembly Wiring Diagram
GTY233870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
