Reverse Signal Circuit: Procedure

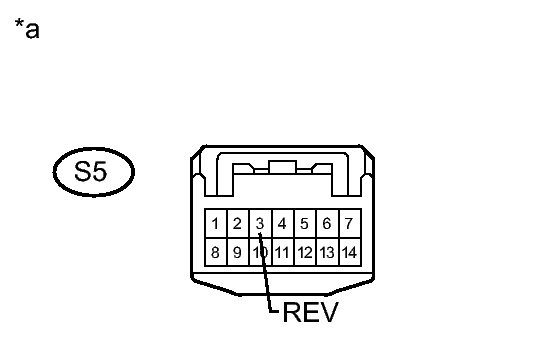

Fig 1: Identifying S5 Inner Rear View Mirror Assembly Connector Terminal 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the S5 inner rear view mirror assembly connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   S5-3 (REV) - Body ground	Ignition switch ON, shift lever in R	11 to 14 V
   S5-3 (REV) - Body ground	Ignition switch ON, shift lever in not R	Below 1 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Inner Rear View Mirror Assembly)

NG → See step   2

OK → See step   3

1. Disconnect the S5 inner rear view mirror assembly connector.
2. Disconnect the B42 park/neutral position switch assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   S5-3 (REV) - B42-1 (RL)	Always	Below 1 Ω
   S5-3 (REV) - Body ground	Always	10 kΩ or higher

   RESULT



   Result	Proceed to
   OK (for A750E)	A
   OK (for A750F)	B
   NG	C

B → See step   5

C → REPAIR OR REPLACE HARNESS OR CONNECTOR

A → See step   4
