Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch: Procedure

1. Check if DTC B2312 is output. Refer to DTC B2312: Power Window Switch Malfunction .

   OK

   DTC B2312 is not output.

NG → See step   8

OK: Go to next step

1. Use the Data List to check if the front power window regulator motor is functioning properly. Refer to DATA LIST / ACTIVE TEST .
   P-DOOR MOTOR



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   P Door P/W Up SW	Front passenger side power window manual up signal / ON or OFF	ON: Front passenger side power window manual up switch operated OFF: Front passenger side power window regulator switch not operated	-
   P Door P/W Down SW	Front passenger side power window manual down signal / ON or OFF	ON: Front passenger side power window manual down switch operated OFF: Front passenger side power window regulator switch not operated	-

   OK

   On tester screen, each item changes between ON and OFF according to above chart.

NG → See step   4

OK: Go to next step

1. Select the Active Test, use the Techstream to generate a control command, and then check that power window regulator motor operates. Refer to DATA LIST / ACTIVE TEST .
   P-DOOR MOTOR



   Tester Display	Test Part	Control Range	Diagnostic Note
   Power Window	Passenger side power window	OFF/UP/DOWN	-

   OK

   The power window regulator motor operates normally.

NG → See step   10

OK → See step   11

1. Remove the power window regulator switch. Refer to INSPECTION .

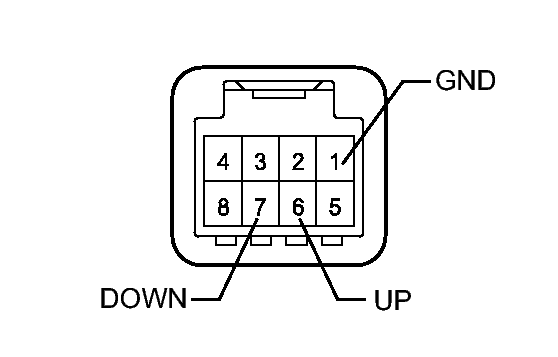

   Fig 1: Identifying Power Window Regulator Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   6 (UP) - 1 (GND)	Manual up operation	Below 1 Ω
   7 (DOWN) - 1 (GND)	Manual down operation	Below 1 Ω
   6 (UP) - 1 (GND)	Not operated	10 kΩ or higher
   7 (DOWN) - 1 (GND)	Not operated	10 kΩ or higher

NG → See step   9

OK: Go to next step

1. Disconnect the g1 power window regulator switch connector.
   Fig 2: Identifying G1 Power Window Regulator Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   g1-1 (GND) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Power Window Regulator Switch Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the g1 power window regulator switch connector.
2. Disconnect the H2 power window regulator motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   g1-6 (UP) - H2-10 (UP)	Always	Below 1 Ω
   g1-7 (DOWN) - H2-7 (DOWN)	Always	Below 1 Ω
   g1-6 (UP) - Body ground	Always	10 kΩ or higher
   g1-7 (DOWN) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the H2 power window regulator motor connector.
   Fig 3: Identifying H2 Power Window Regulator Motor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage and resistance according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   H2-2 (B) - Body ground	Always	11 to 14 V

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H2-1 (GND) - Body ground	Always	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Front Power Window Regulator Motor Assembly RH)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   10
