Cruise Control Main Switch: Inspection: Inspection

INSPECT CRUISE CONTROL MAIN SWITCH

Remove the cruise control main switch.

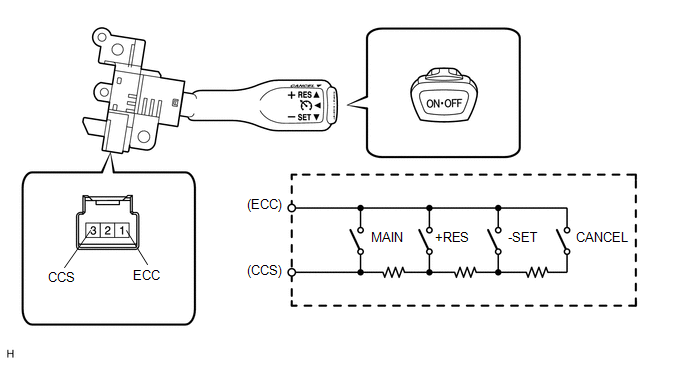

Fig 1: Identifying Cruise Control Main Switch

GTY221617

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Switch Condition	Specified Condition
1 (ECC) - 3 (CCS)	Neutral	1 MΩ or higher
1 (ECC) - 3 (CCS)	+RES	235 to 245 Ω
1 (ECC) - 3 (CCS)	-SET	617 to 643 Ω
1 (ECC) - 3 (CCS)	CANCEL	1509 to 1571 Ω
1 (ECC) - 3 (CCS)	Main switch off	1 MΩ or higher
1 (ECC) - 3 (CCS)	Main switch on	Below 2.5 Ω

If the result is not as specified, replace the cruise control main switch.
