Steering Pad: Components: Illustration

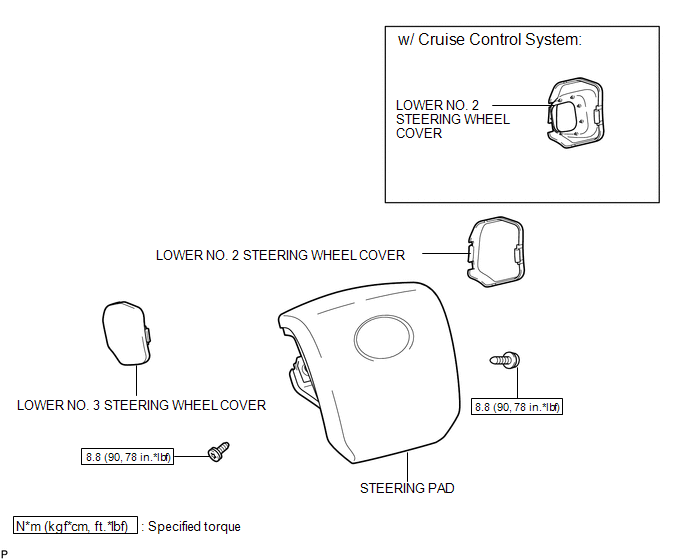

Fig 1: Identifying Steering Pad Replacement Components With Torque Specifications
GTY226382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
