Certification ECU Power Source Circuit: Wiring Diagram

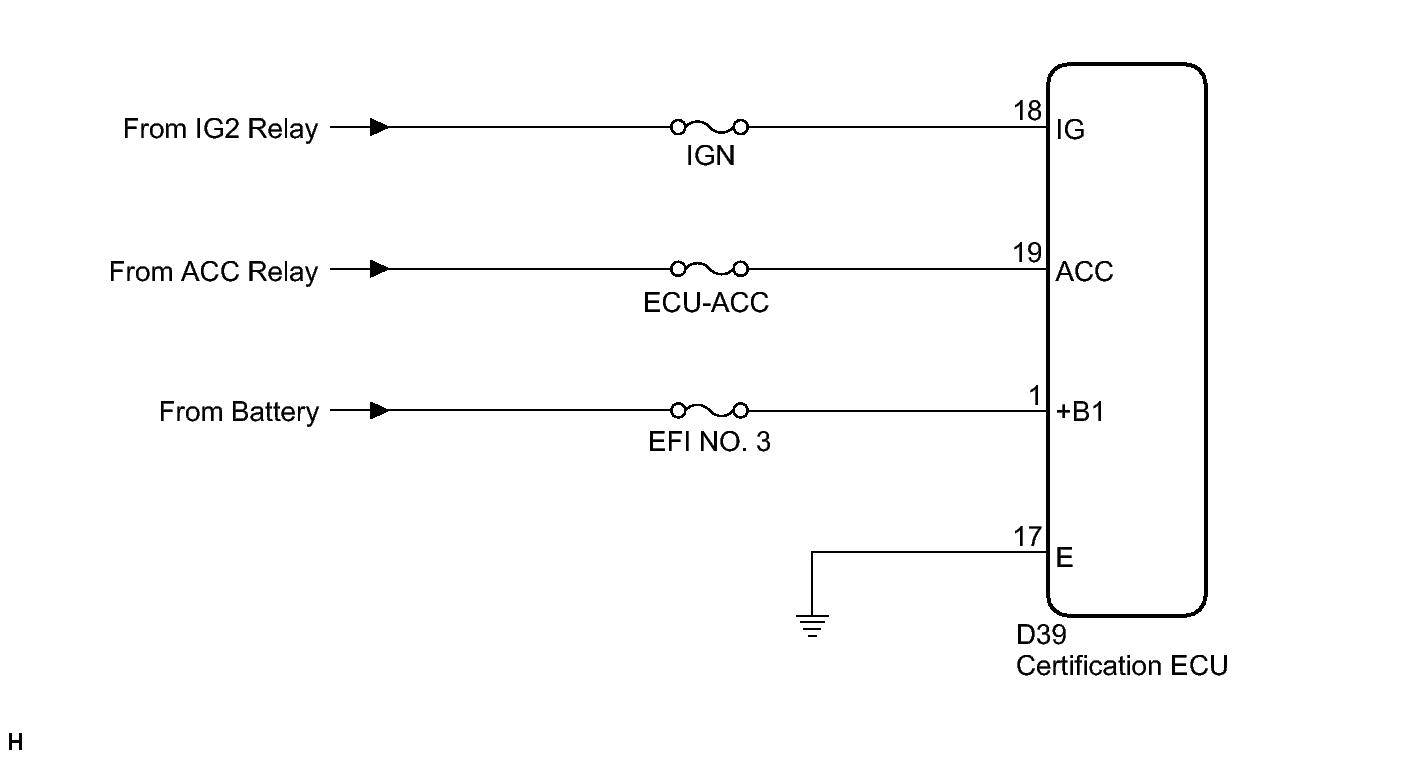

Fig 1: Certification ECU Power Source Circuit - Wiring Diagram
GTY305879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
