Microphone Circuit between Microphone and Navigation Receiver Assembly: Wiring Diagram

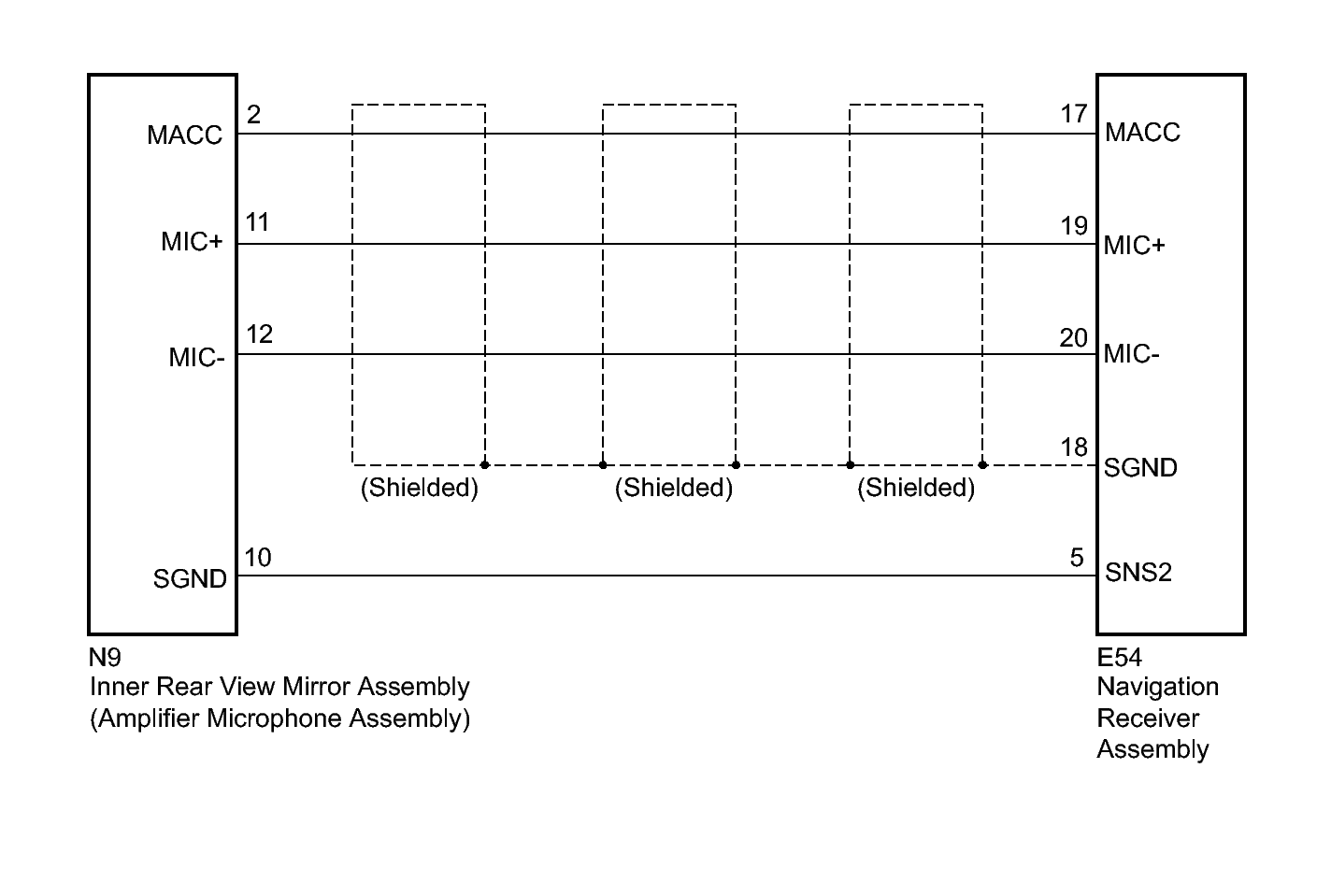

Fig 1: Microphone Circuit Between Microphone And Navigation Receiver Assembly - Wiring Diagram
GTY331650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
