Sound Signal Circuit between Navigation Receiver Assembly and Stereo Component Amplifier: Wiring Diagram

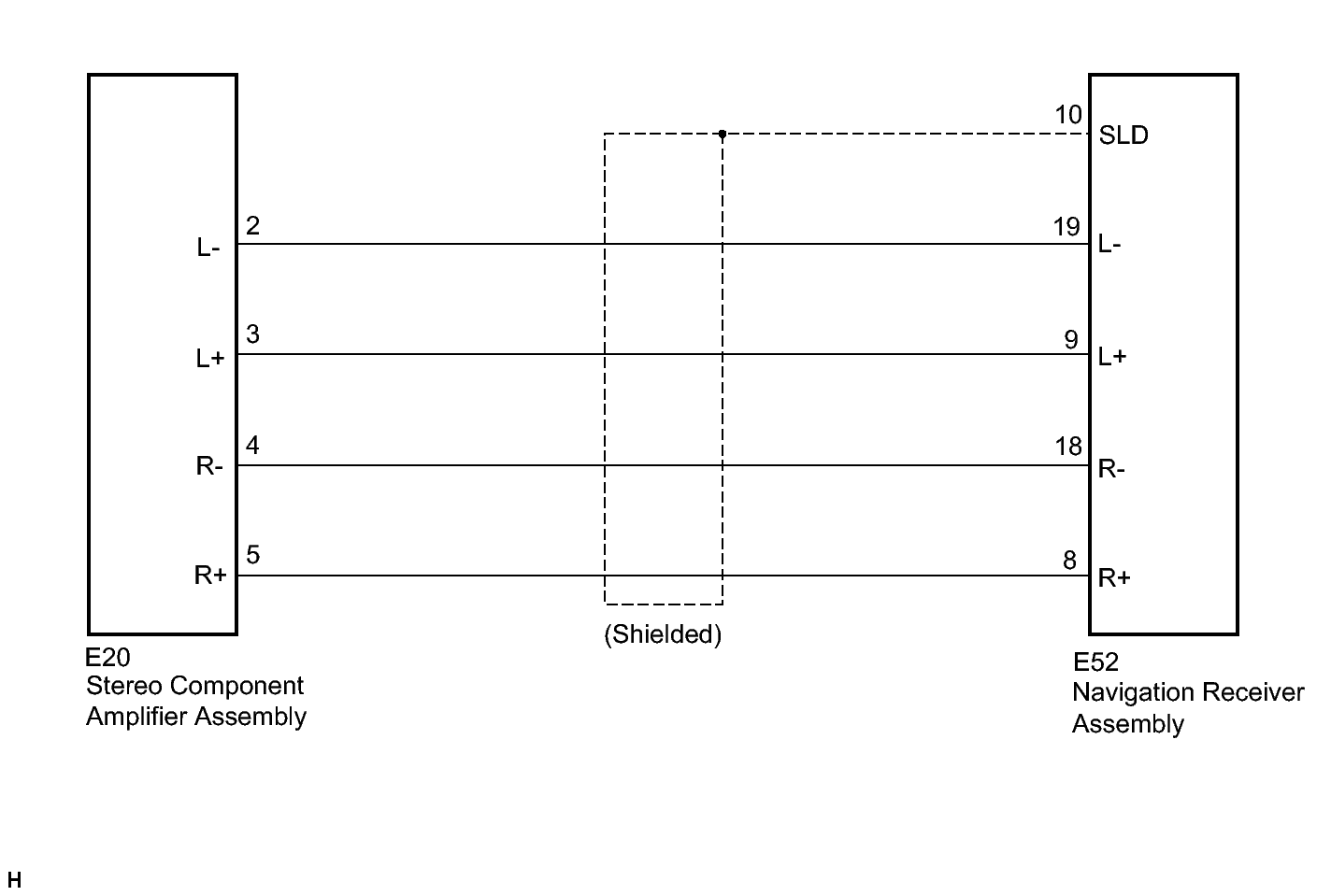

Fig 1: Sound Signal Circuit Between Navigation Receiver Assembly And Stereo Component Amplifier - Wiring Diagram
GTY329336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
