Sound Signal Circuit between Navigation Receiver Assembly and Stereo Jack Adapter: Wiring Diagram

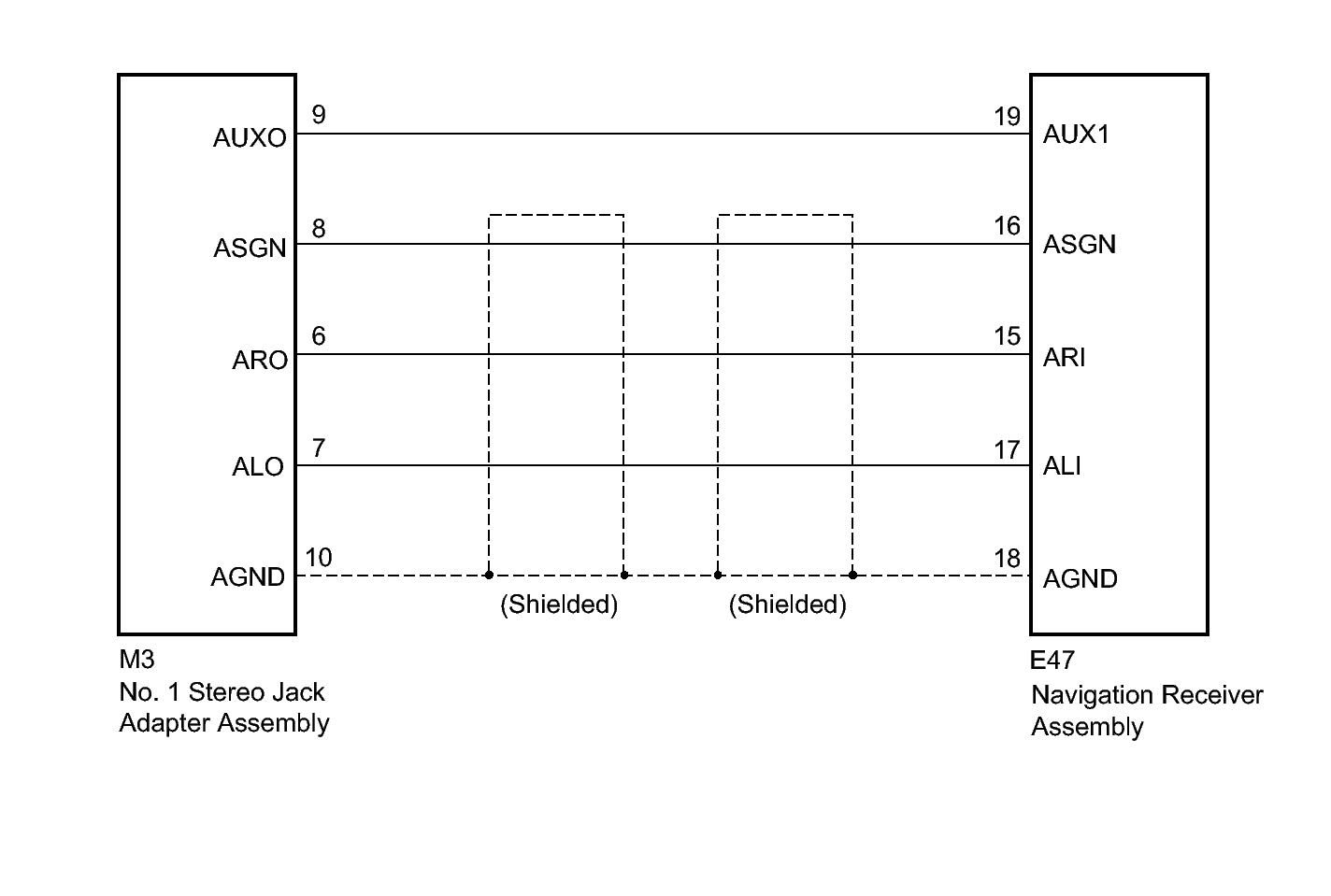

Fig 1: Sound Signal Circuit Between Navigation Receiver Assembly And Stereo Jack Adapter - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
