Portable Player cannot be Connected Manually/Automatically: Procedure

1. Display the "Select Portable Player" screen.
2. Check if the portable player is registered as a connected device.

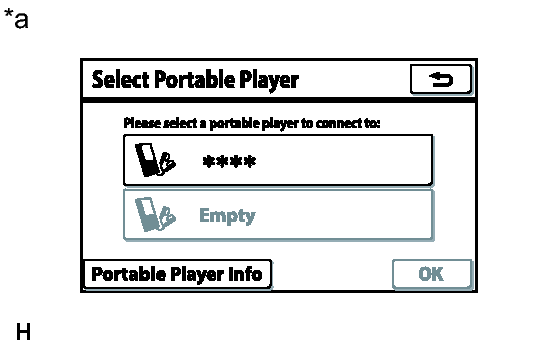

   Fig 1: Screen Display - Select Portable Player

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   If a cellular phone is used as a portable player, it must be registered independently from the registration that is performed for the hands-free system.

   HINT:

   Only 2 portable players can be registered.

   Result

   Result	Proceed to
   The portable player is registered as a connected device.	A
   The portable player is not registered as a connected device.	B

   TEXT IN ILLUSTRATION



   *a

   Example

B → REGISTER PORTABLE PLAYER AS CONNECTED DEVICE

A: Go to next step

1. Check the connection condition between the portable player and navigation receiver assembly.

   Result

   Result	Proceed to
   The portable player cannot connect automatically.	A
   The portable player cannot be connected manually.	B

B → See step   4

A: Go to next step

1. Display the "BT Audio Setting" screen.
2. Check automatic connection settings of the "Bluetooth" audio.
   1. Check if "On" is displayed for "Auto Bluetooth Connect" on the "BT Audio Setting" screen.

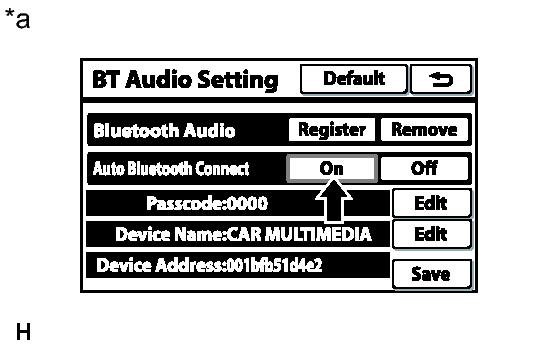

      Fig 2: Screen Display - BT Audio Setting

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      "On" is displayed for "Auto Bluetooth Connect".

      TEXT IN ILLUSTRATION



      *a

      Example

NG → CHANGE AUTO BLUETOOTH CONNECT TO "On"

OK: Go to next step

1. Check the status of the portable player.
   1. Check that the portable player is in standby mode.
   2. Check that the portable player is not connected to another device (headphones etc.).

      OK

      The portable player is in standby mode or connected to another device (headphones etc.).

NG → CHANGE PORTABLE PLAYER TO STANDBY MODE AND DISCONNECT OTHER DEVICES (HEADPHONES etc.)

OK: Go to next step

1. Check if the portable player can be connected manually/automatically on another "Bluetooth" audio compatible vehicle of the same model.

   OK

   The portable player can be connected manually/automatically.

NG → PORTABLE PLAYER IS NOT COMPATIBLE

OK: Go to next step

1. Remove additional devices which use radio waves.
2. Check if the portable player can be connected manually/automatically.

   OK

   The portable player can be connected manually/automatically.

NG → See step   7

OK → END
