Inner Rear View Mirror Power Source Circuit: Wiring Diagram

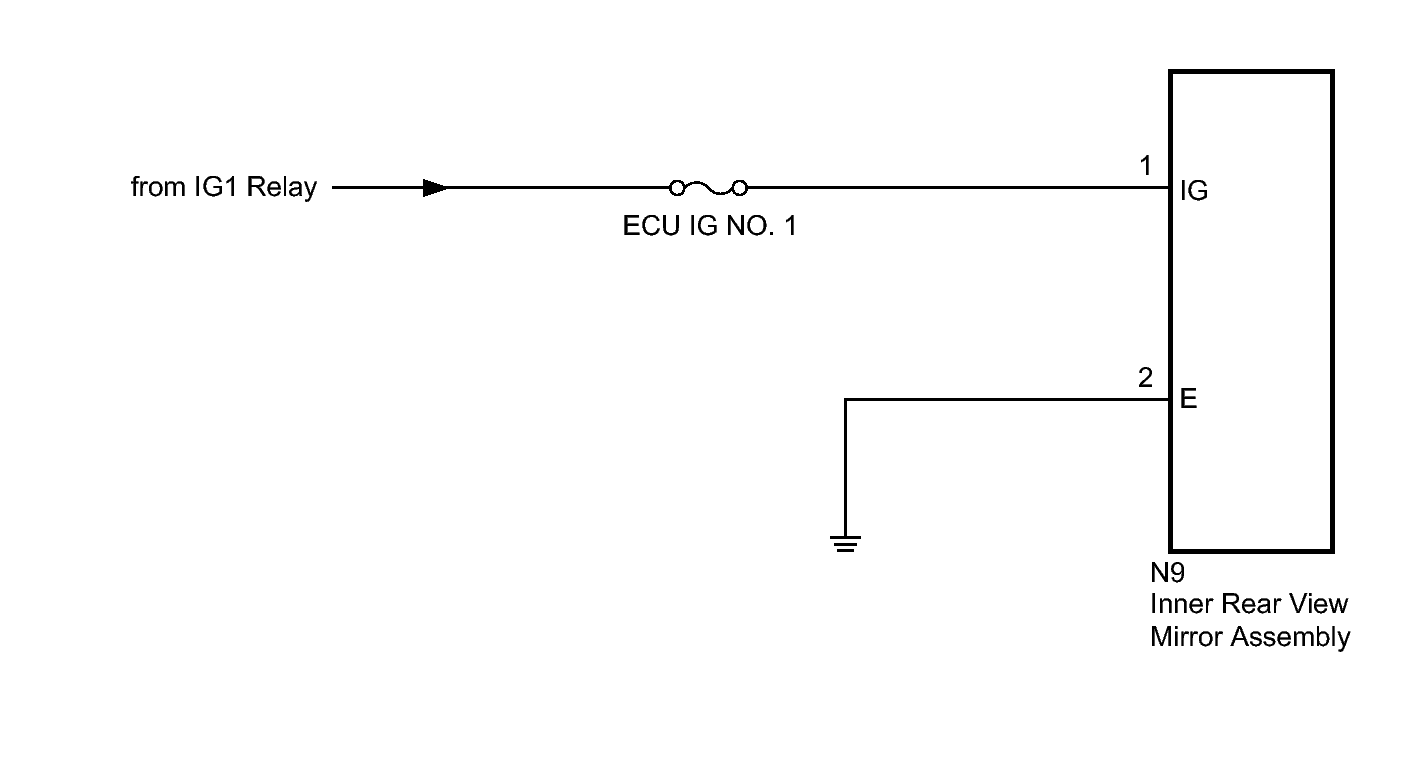

Fig 1: Inner Rear View Mirror Power Source Circuit Diagram
GTY332364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
