Combination Switch ECU Power Source Circuit: Procedure

1. Disconnect the connector from the combination switch ECU.

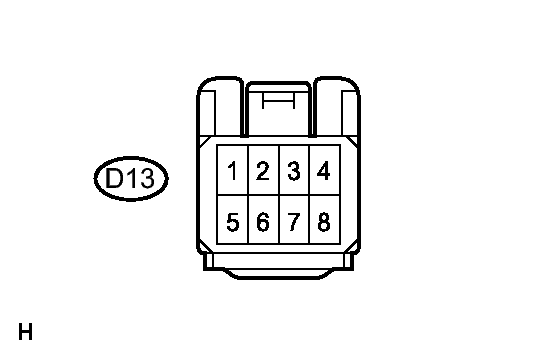

   Fig 1: Identifying Combination Switch ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Voltage

   Tester connection	Condition	Specified Condition
   D13-1 - Body ground	Always	10 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the voltage according to the value(s) in the table below.
   Fig 2: Identifying Combination Switch ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Voltage

   Tester connection	Condition	Specified Condition
   D13-2 - Body ground	Ignition switch on (IG)	10 to 14 V
   D13-2 - Body ground	Ignition switch off	Below 1 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.
   Fig 3: Identifying Combination Switch ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Resistance

   Tester connection	Condition	Specified Condition
   D13-5 - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
