ECU Power Source Circuit: Procedure

1. Disconnect the front power seat switch connectors.
   Fig 1: Inspecting Position Control ECU And Wiring Assembly (Front Power Seat Switch Power Source Circuit)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Voltage

   Tester Connection	Condition	Specified Condition
   P14-5 (+B) - Body ground	Always	10 to 14 V
   P13-4 (IG) - Body ground	Ignition switch on (IG)	10 to 14 V
   P13-8 (SYSB) - Body ground	Always	10 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

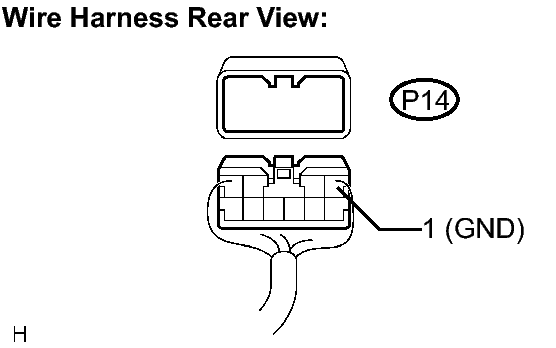

   Fig 2: Identifying Front Power Seat Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Resistance

   Tester Connection	Condition	Specified Condition
   P14-1 (GND) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (GROUND CIRCUIT)

OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
