Back Window Glass: Components: Illustration

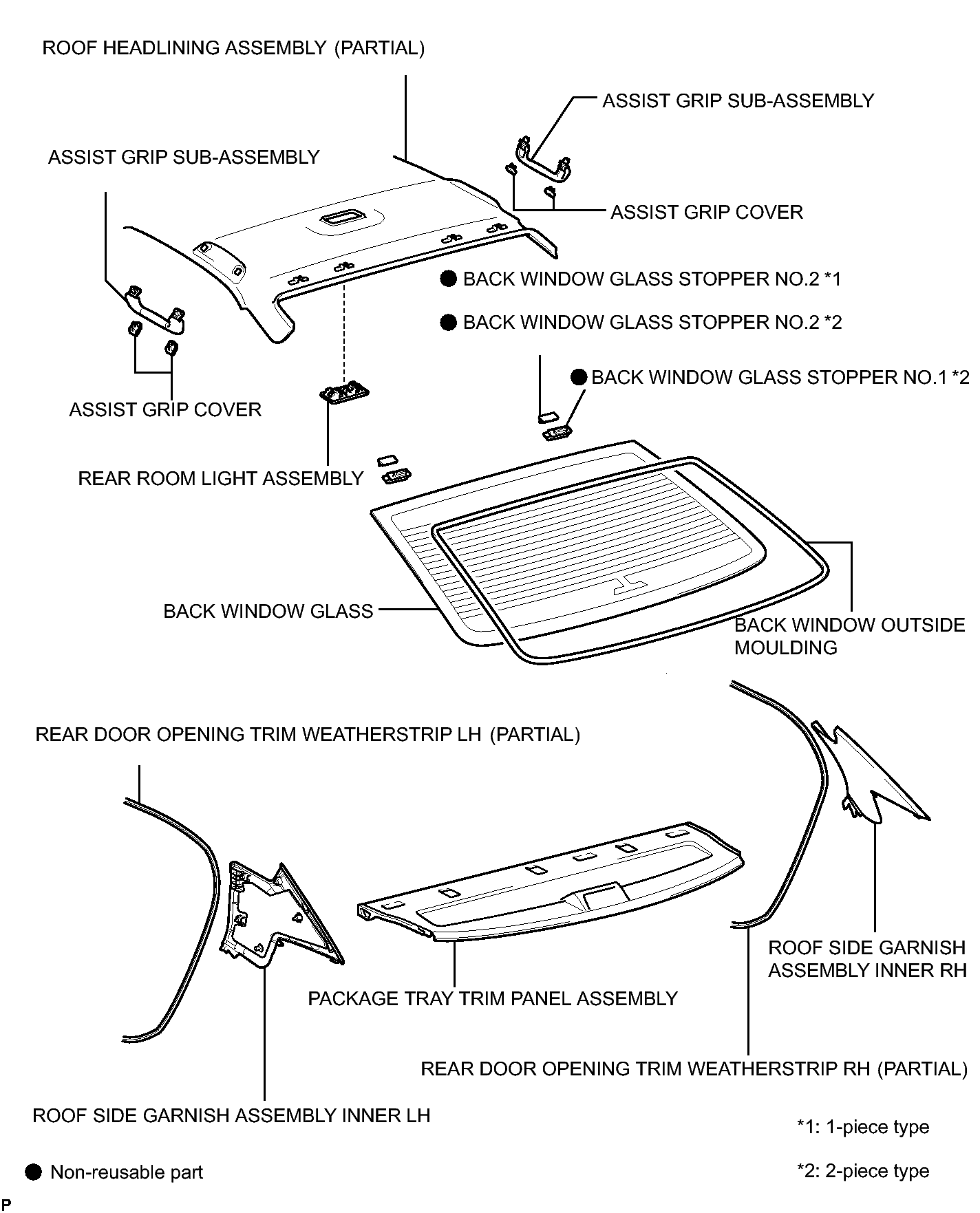

Fig 1: Identifying Back Window Glass Replacement Components
GTY187546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
