DTC B2286: Runnable Signal Malfunction: Wiring Diagram

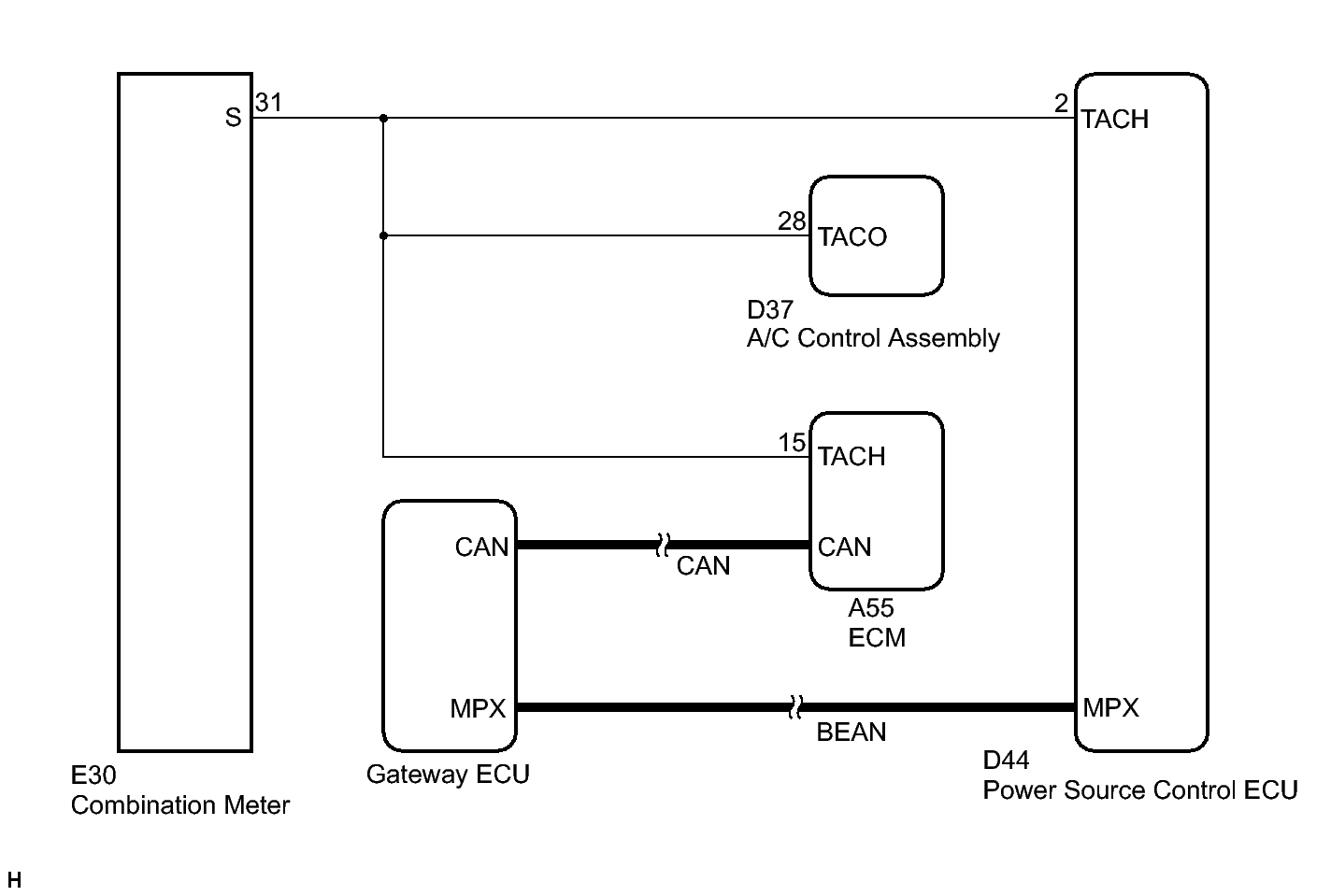

Fig 1: Runnable Signal Circuit - Wiring Diagram
GTY332627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
