Smart Key Specifications (T-SB-0033-13)

Publication date: 2013-02-19
Reference number: T-SB-0033-13

SMART KEY SPECIFICATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): T-SB-0033-13, Date of Issue: February 19, 2013

TOYOTA:	2010 - 2013 4Runner; 2013 Avalon HV; 2009 - 2013 Avalon, Camry, Camry HV, Highlander, Venza; 2008 - 2013 Highlander HV, Prius, RAV4; 2009 - 2011, 2013 Land Cruiser; 2012 - 2013 Prius C, Prius V, RAV4 EV; 2010, 2012 - 2013 Prius PHV; 2011 - 2013 Sienna
SERVICE CATEGORY:	Vehicle Interior
SECTION:	Theft Deterrent/Keyless Entry
COPYRIGHT:	© 2018 Toyota, USA License Agreement TMS1002

APPLICABILITY

YEAR(S)	MODEL(S)	ADDITIONAL INFORMATION
2010 - 2013	4Runner
2013	Avalon HV
2009 - 2013	Avalon, Camry, Camry HV, Highlander, Venza
2008 - 2013	Highlander HV, Prius, RAV4
2009 - 2011, 2013	Land Cruiser
2012 - 2013	Prius C, Prius V, RAV4 EV
2010, 2012 - 2013	Prius PHV
2011 - 2013	Sienna

INTRODUCTION

Some customers may inquire about the frequency and power output of the SmartKey/Smart Entry systems used on various models. The Smart Key/Smart Entry systems conform to all applicable FCC rules. This bulletin details the applicable specifications for these systems.

CAUTION: Implanted pacemakers, cardiac defibrillators, or other electrical medical devices may be affected by radio waves emitted by the Smart Key/Smart Entry Antenna (in detection area). Customers with concerns about these systems and their effects on implanted electronic medical devices should consult their physician or the device manufacturer. This information is also included in the Owner's Manual for each applicable model.

If necessary, details on disabling the Smart Key/Smart Entry functions can be found in the appropriate vehicle Repair Manual. Refer to the Technical Information System (TIS) for additional details.

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	-	-	-	-

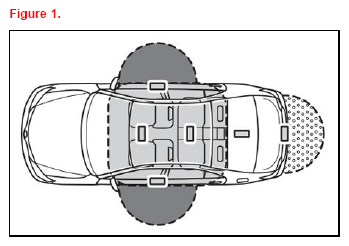

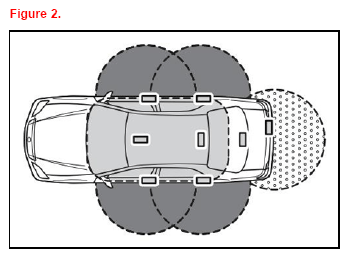

SMART KEY DETECTION AREA

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SPECIFICATIONS: SMART KEY ANTENNA (COMMUNICATION FROM VEHICLE TO KEY)

Frequency: 134.2 kHz
Power Output: 95dB μV/m (at 3 meters away from the Smart Key Antenna)
Smart Antenna RF Output Power

SMART KEY ANTENNA SPECIFICATIONS (COMMUNICATION FROM VEHICLE TO KEY)

SPECIFICATIONS
LOCATION	FREQUENCY	OUTPUT POWER/ELECTRIC FIELD INTENSITY	MODULATION METHOD	MOUNTING POINT IN VEHICLE
Inside Passenger Compartment	134.2 kHz	95dB μV/m @3 m	AM	Differs in each vehicle; consult the relevant Repair Manual for each vehicle
Inside Trunk (ONLY in Vehicles with Trunk)				Inside Trunk
Outside Vehicle				Inside Door Handle Inside Rear Bumper

TRANSMIT TIMING SPECIFICATIONS

TRANSMIT TIMING
LOCATION	VEHICLE PARKED	ENTERING OR EXITING VEHICLE	VEHICLE IS BEING DRIVEN
Inside Passenger Compartment	Does NOT Transmit	Operating door locks Operating engine switch/depressing brake pedal Opening or closing doors With "IG-ON" or "ACC-ON", and in the P-range, closing a door when the key cannot be detected inside the vehicle (continues for 3 seconds until the key is detected or the power switch is turned OFF), A/T and HV vehicles ONLY IG OFF after driving more than 20 minutes (Not in P-range) when shutting the door, if the key cannot be detected inside the vehicle (transmits for 3 seconds until the key is located), A/T and HV vehicles ONLY	When key is NOT detected inside passenger compartment while car is being driven (transmits for 3 seconds)
Inside Trunk (ONLY in Vehicles w/Trunk)	Does NOT Transmit	During the following operations: Door lock is operated/trunk switch is depressed Closing the trunk Opening or closing doors	Does NOT Transmit
Outside Vehicle	When door is locked, transmits at 250 ms intervals (stops when door is unlocked) Does NOT transmit	Operating door locks Trunk or back door open switch is depressed	Does NOT Transmit

SPECIFICATIONS: SMART KEY TRANSMITTER/WIRELESS REMOTE (COMMUNICATION FROM KEY TO VEHICLE)

SMART KEY TRANSMITTER/WIRELESS REMOTE SPECIFICATIONS (COMMUNICATION FROM KEY TO VEHICLE)

SPECIFICATION
MODEL	MODEL YEAR	FREQUENCY	OUTPUT POWER/ELECTRIC FIELD INTENSITY	MODULATION METHOD
Prius	2008 - 2009	312.15 MHz	80dB μV/m @3 m	AM
Avalon	2009 - 2012	312.15 MHz 314.35 MHz	81dB μV/m @3 m
Camry	2009 - 2011
Camry HV	2009 - 2011
Highlander	2009 - 2013
Highlander HV	2008 - 2013
Land Cruiser	2009 - 2013
RAV4	2008 - 2012
4Runner	2010 - 2013	312.15 MHz 314.35 MHz	75dB μV/m @3 m	FM
Avalon	2013
Avalon HV	2013
Camry	2012 - 2013
Camry HV	2012 - 2013
Prius	2010 - 2013
Prius C	2012 - 2013
Prius PHV	2010 - 2013
Prius V	2012 - 2013
RAV4	2013
RAV4 EV	2012 - 2013
Sienna	2011 - 2013
Venza	2009 - 2013
