Center Airbag Sensor Assembly: Components: Illustration

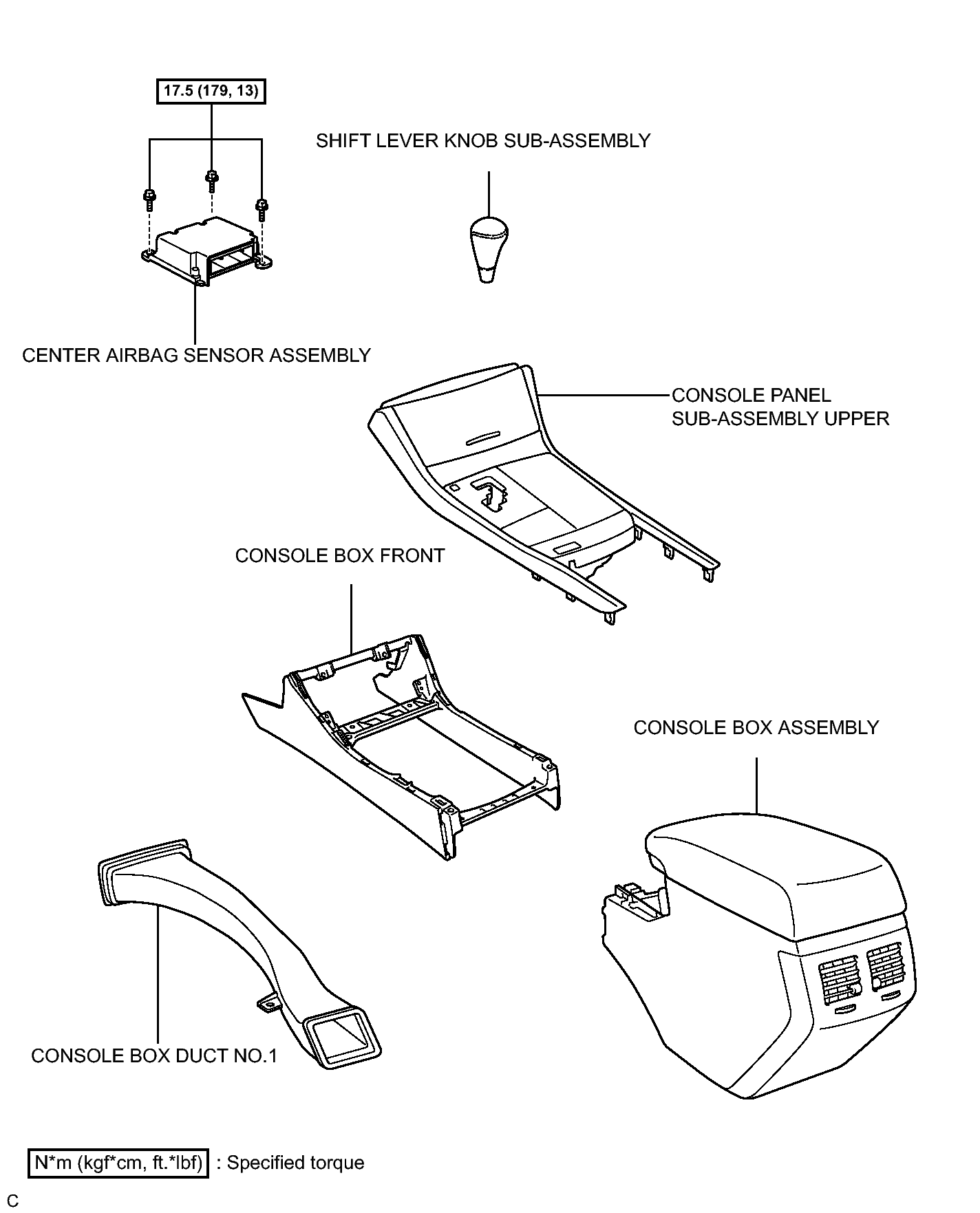

Fig 1: Identifying Center Airbag Sensor Assembly Replacement Components With Torque Specifications
GTY201220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
