Keyless Entry Receiver: Testing and Inspection

DOOR LOCK: DOOR CONTROL RECEIVER: INSPECTION

1. INSPECT DOOR CONTROL RECEIVER

(a) Disconnect the door control receiver connector.

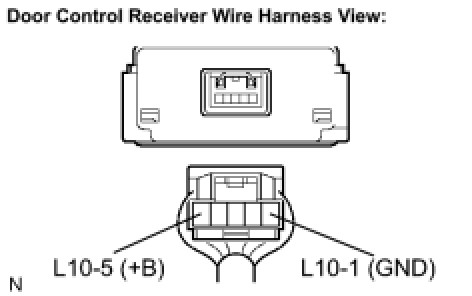

(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, there may be a malfunction on the wire harness side.
