Removal

2GR-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR: REMOVAL

1. PREVENT GASOLINE FROM SPILLING OUT

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. DRAIN ENGINE COOLANT Service and Repair

4. REMOVE WINDSHIELD WIPER MOTOR & LINK ASSEMBLY

Removal

5. REMOVE COWL TOP PANEL OUTER Removal

6. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

7. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE Removal

8. REMOVE INTAKE AIR SURGE TANK Removal

9. REMOVE INTAKE MANIFOLD Removal

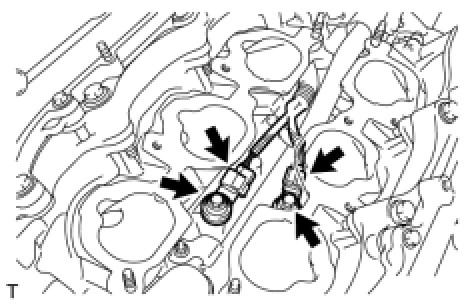

10. REMOVE KNOCK CONTROL SENSOR

(a) Disconnect the 2 knock control sensor connectors.





(b) Remove the 2 bolts and 2 knock control sensors.
