Service Data

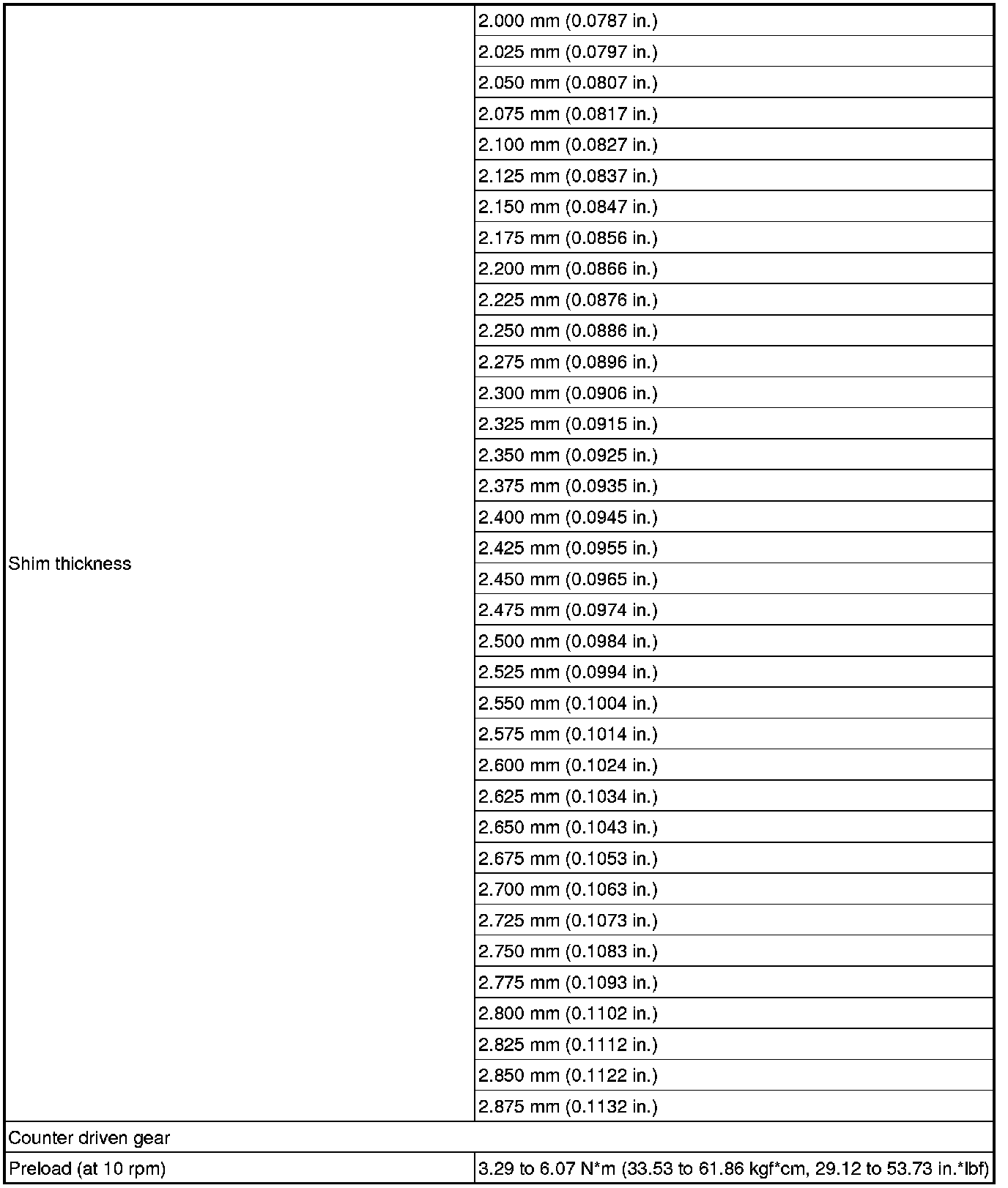

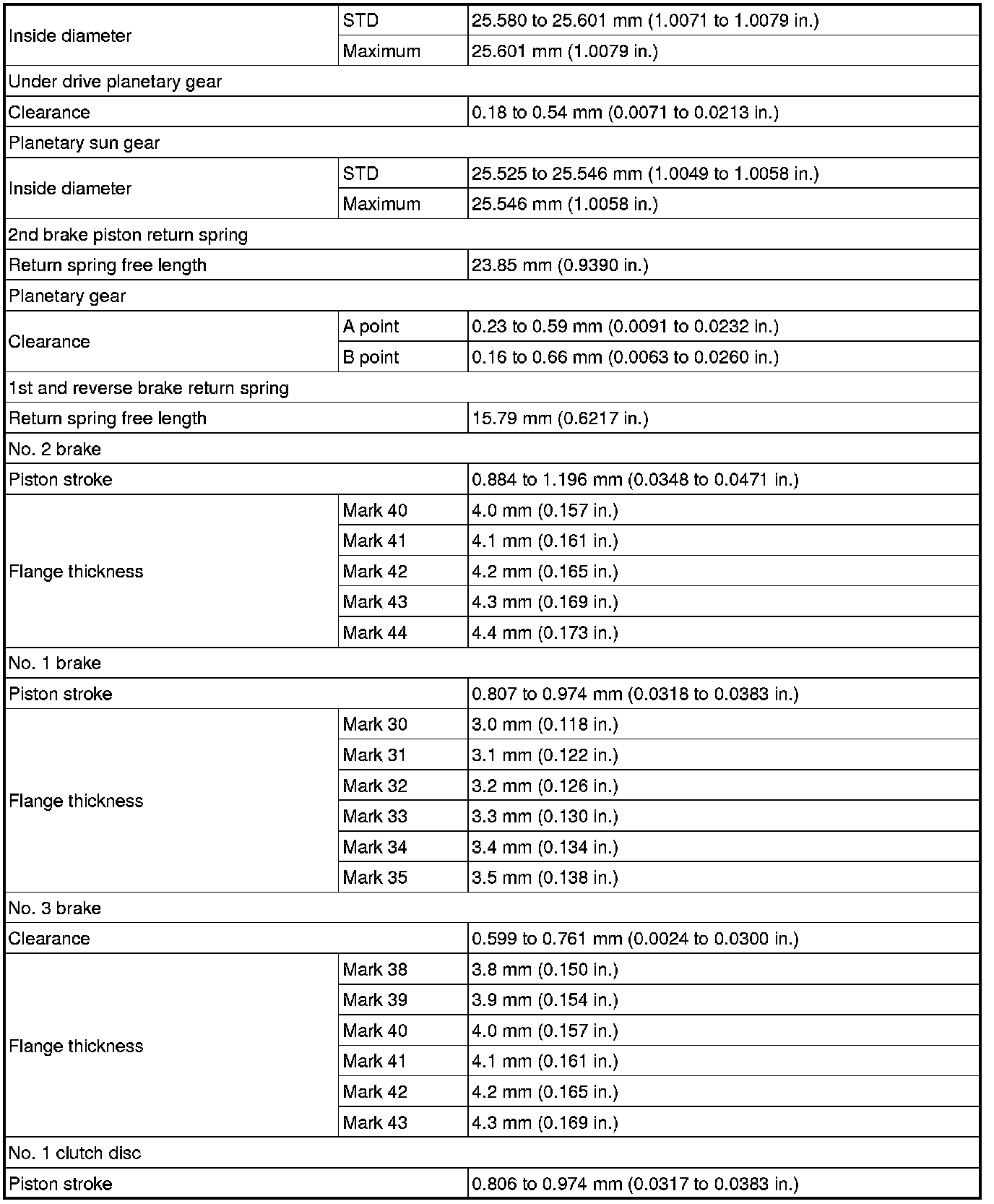

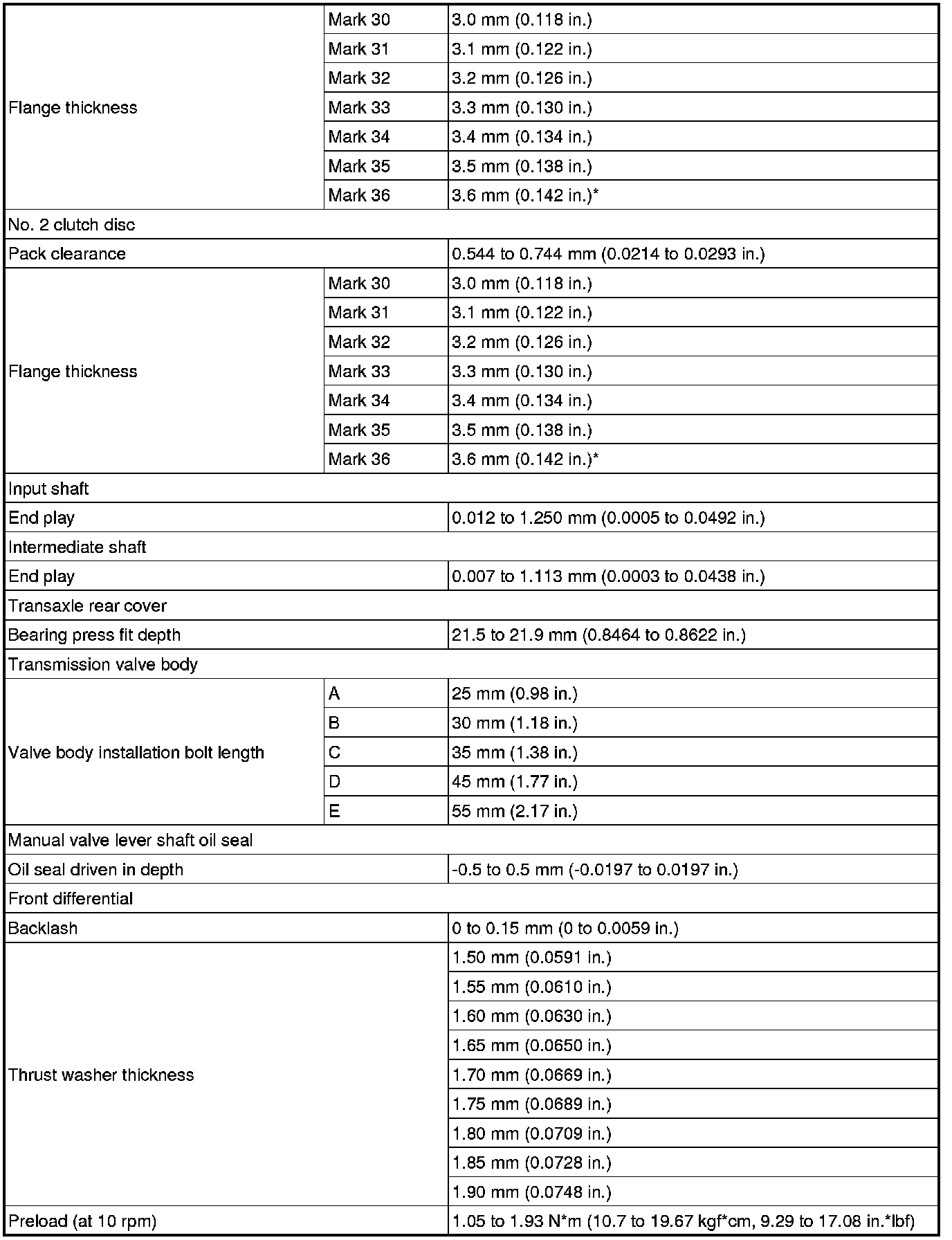

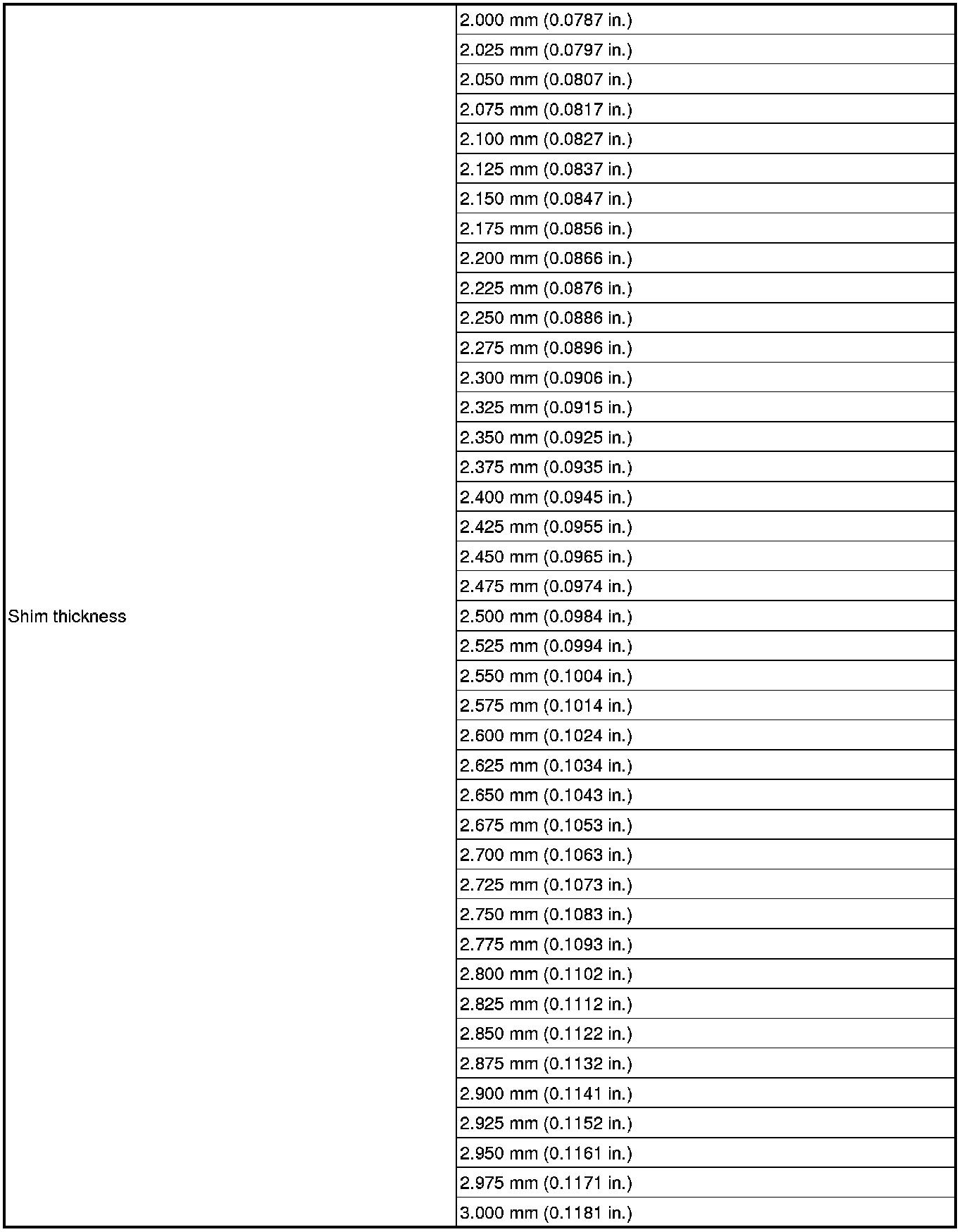

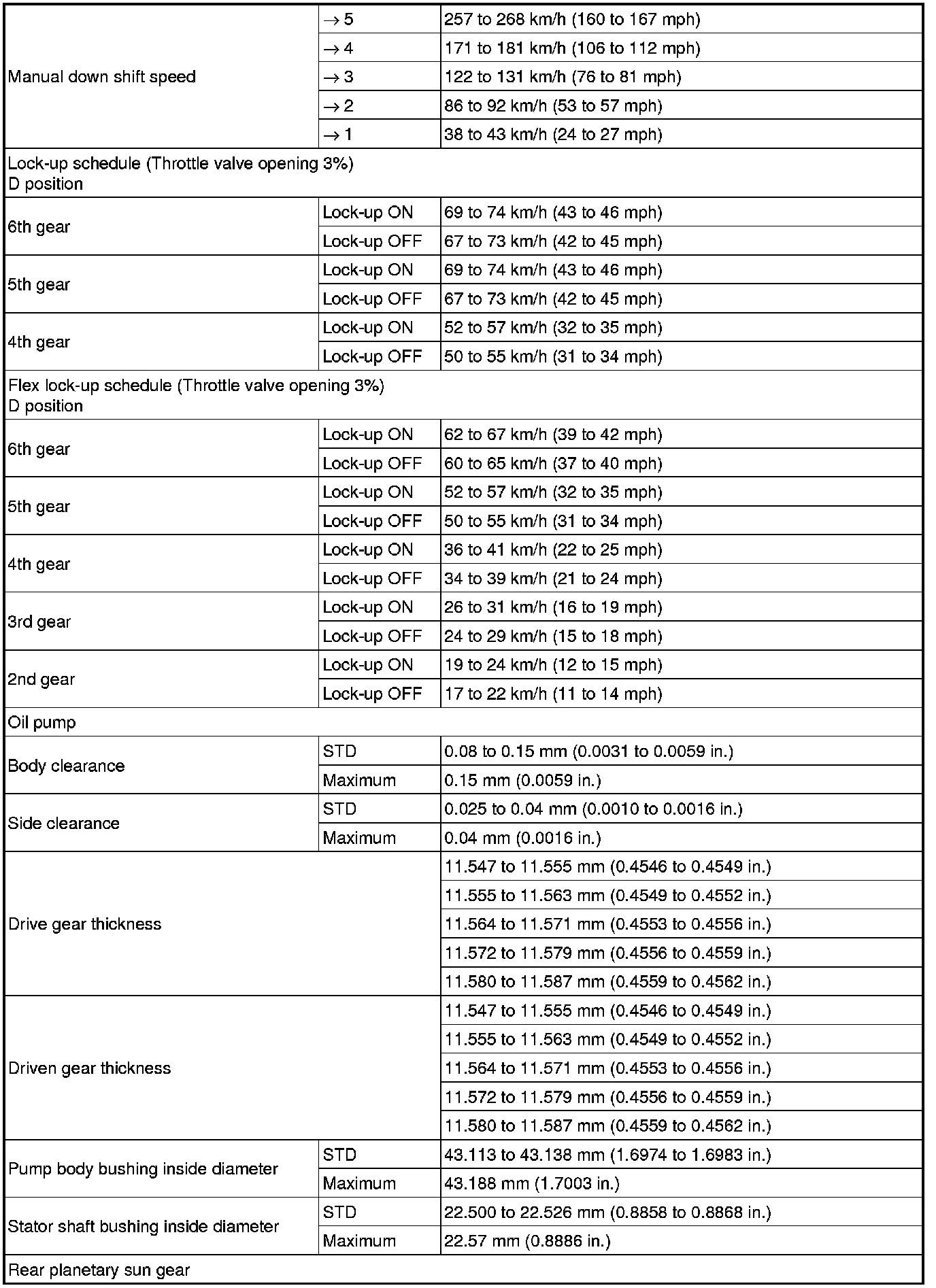

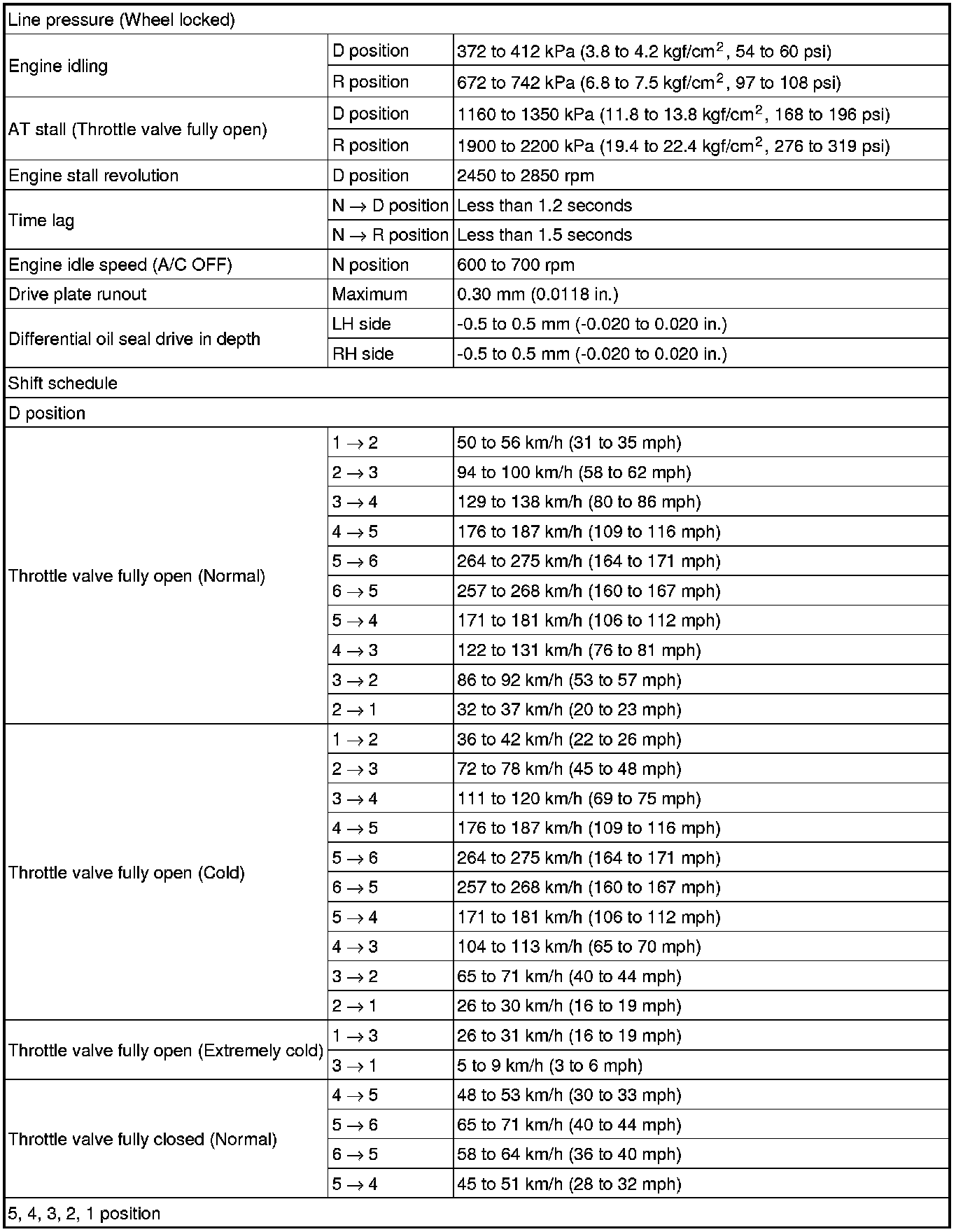

SERVICE SPECIFICATIONS: U660E AUTOMATIC TRANSAXLE: SERVICE DATA
HINT
*Transaxle serial number 3########## only.
