Intake Manifold

INTAKE MANIFOLD

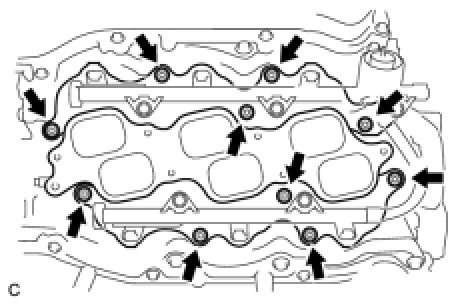

Install and tighten the 6 bolts and 4 nuts uniformly in several steps.

Torque 21 Nm (214 kgf-cm, 15 ft-lbf)


INTAKE AIR SURGE TANK

Install a new gasket to the intake air surge tank.

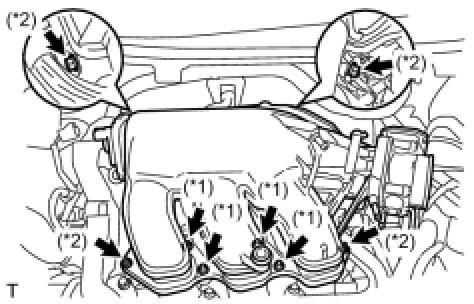

Using a 5 mm hexagon socket wrench, install the 4 bolts. (*1)

Torque 18 Nm (184 kgf-cm, 13 ft-lbf)

Install the intake air surge tank with the 2 nuts and 2 bolts. (*2)

Nut - Torque 16 Nm (163 kgf-cm, 12 ft-lbf)

Bolt - Torque 21 Nm (214 kgf-cm, 15 ft-lbf)
