Key Luggage Compartment Lock-in Prevention Function does not Operate: Procedure

  1. CHECK ENTRY FUNCTION (ENTRY LUGGAGE COMPARTMENT OPEN FUNCTION)
    1. Check that the entry luggage compartment open function operates. Refer to OPERATION CHECK .

      Result

      Result Proceed to
      Entry luggage compartment door open function operates A
      Entry luggage compartment door open function does not operate B

    B → See step   8

    A: Go to next step

  2. CHECK WAVE ENVIRONMENT
    1. Bring the electrical key transmitter sub-assembly near the No. 3 indoor electrical key antenna assembly (inside luggage compartment), and check that the entry luggage compartment lock-in prevention function operates.
      Fig 1: Checking No. 3 Indoor Electrical Key Antenna (Inside Luggage Compartment)
      GTY321468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Inspection Point
      NOTE:

      If the electrical key transmitter sub-assembly is brought within 0.2 m (0.656 ft.) of the No. 3 indoor electrical key antenna assembly (inside luggage compartment), communication is not possible.

      HINT:

      • When the electrical key transmitter sub-assembly is brought near the No. 3 indoor electrical key antenna assembly (inside luggage compartment), the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
      • If the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

      OK

      Entry functions operate normally.

    NG → See step   3

    OK → AFFECTED BY WAVE INTERFERENCE

  3. CHECK KEY DIAGNOSTIC MODE
    1. Check the following antennas in the key diagnostic mode. Refer to OPERATION CHECK .
    2. Select either channel 1 or channel 2 and inspect the key diagnostic mode for each channel.
      Fig 2: Checking No. 3 Indoor Electrical Key Antenna (Inside Luggage Compartment)
      GTY321468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Inspection Point
      1. When the electrical key transmitter sub-assembly is held at the same height as the rear bumper upper surface and aligned with the center of the rear of the vehicle, check that the wireless door lock buzzer sounds.

        HINT:

        • Place the key in the luggage area.
        • If the buzzer sounds, it can be determined that the No. 3 indoor electrical key antenna assembly (inside luggage compartment) is operating normally.
        • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 1 due to a malfunction, such as wave interference.

        OK

        Wireless door lock buzzer sounds.

    NG → See step   4

    OK → See step   9

  4. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY)
    1. Disconnect the O1 certification ECU (smart key ECU assembly) connector.
    2. Disconnect the N36 No. 3 indoor electrical key antenna assembly (inside luggage compartment) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O1-9 (CLG7) - N36-1 (ANTE7) Always Below 1 Ω
      O1-8 (CG7B) -N36-3 (CLGB) Always Below 1 Ω
      O1-9 (CLG7) or N36-1 (ANTE7) - Body ground Always 10 kΩ or higher
      O1-8 (CG7B) or N36-3 (CLGB) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
    1. Connect the O1 certification ECU (smart key ECU assembly) connector.
    2. Measure the voltage according to the value(s) in the table below.

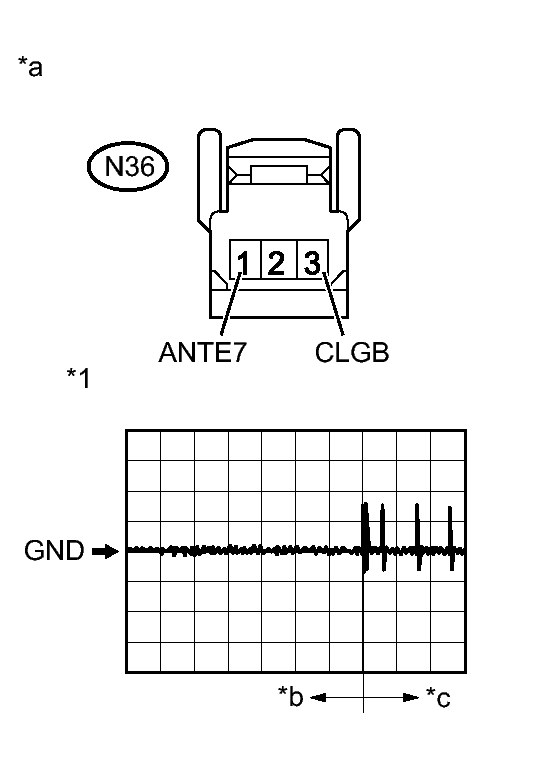

      Fig 3: Checking N36 Connector Terminals With Waveform
      GTY318086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      Tester Connection Switch Condition Tool Setting Specified Condition
      N36-1 (ANTE7) - N36-3 (CLGB) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. All doors closed
      4. Driver door lock sensor not touched → touched
      2 V/DIV., 500 ms/DIV. Pulse generation (See waveform found in Fig 3)
      TEXT IN ILLUSTRATION

      *1 Waveform
      *a Front view of wire harness connector
      (to No. 3 Indoor Electrical Key Antenna Assembly (inside luggage compartment))
      *b Driver door lock sensor not touched
      *c Driver door lock sensor touched

    NG → See step   9

    OK: Go to next step

  6. REPLACE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT)
    1. Replace the No. 3 indoor electrical key antenna assembly (inside luggage compartment). Refer to REMOVAL .

    NEXT: Go to next step

  7. CHECK NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT)
    1. Check that the entry luggage compartment lock-in prevention function operates normally. Refer to OPERATION CHECK .

      OK

      Entry luggage compartment lock-in prevention function operates normally.

    NG → See step   9

    OK → END (NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT) WAS DEFECTIVE

  8. GO TO OTHER PROBLEM (Proceed to Problem Symptoms Table). Refer to  PROBLEM SYMPTOMS TABLE  .
  9. REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL  .
