Smart Key System (For Entry Function) (Diagnostic Codes & Symptom Tests) (Except Hybrid)
>>
SMART KEY SYSTEM (for Entry Function)
>>
Symptom Tests
>>
Key Luggage Compartment Lock-in Prevention Function does not Operate
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Key Luggage Compartment Lock-in Prevention Function does not Operate: Wiring Diagram

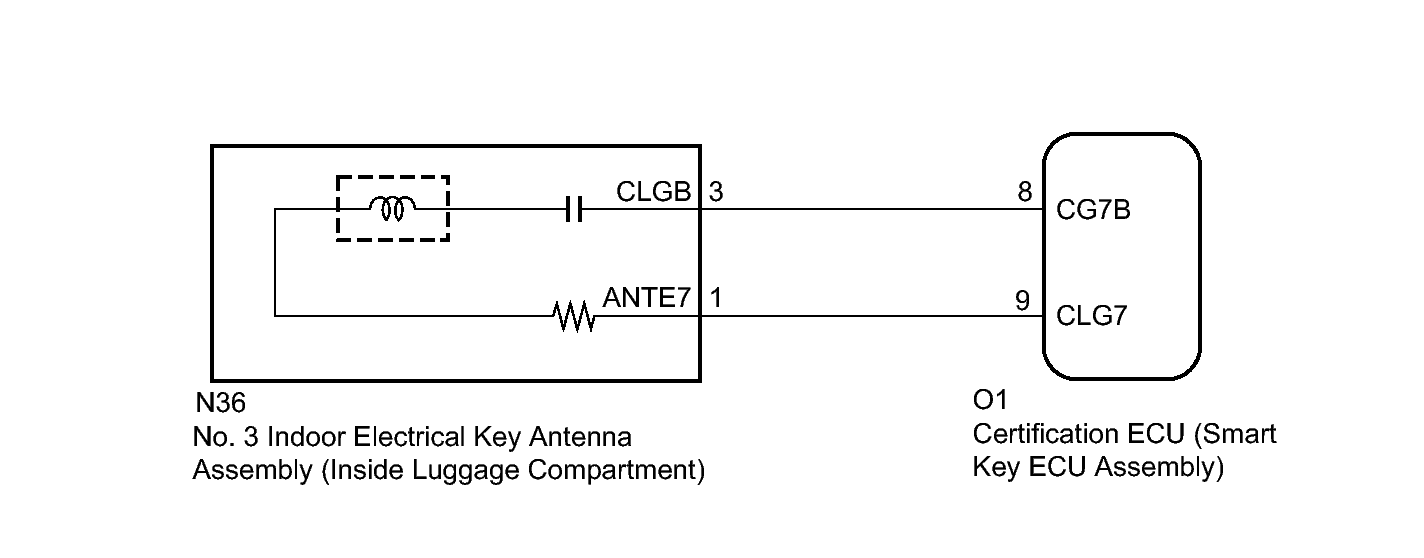

Fig 1: Key Luggage Compartment Lock-In Prevention Function Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
