New Key cannot be Registered: Wiring Diagram

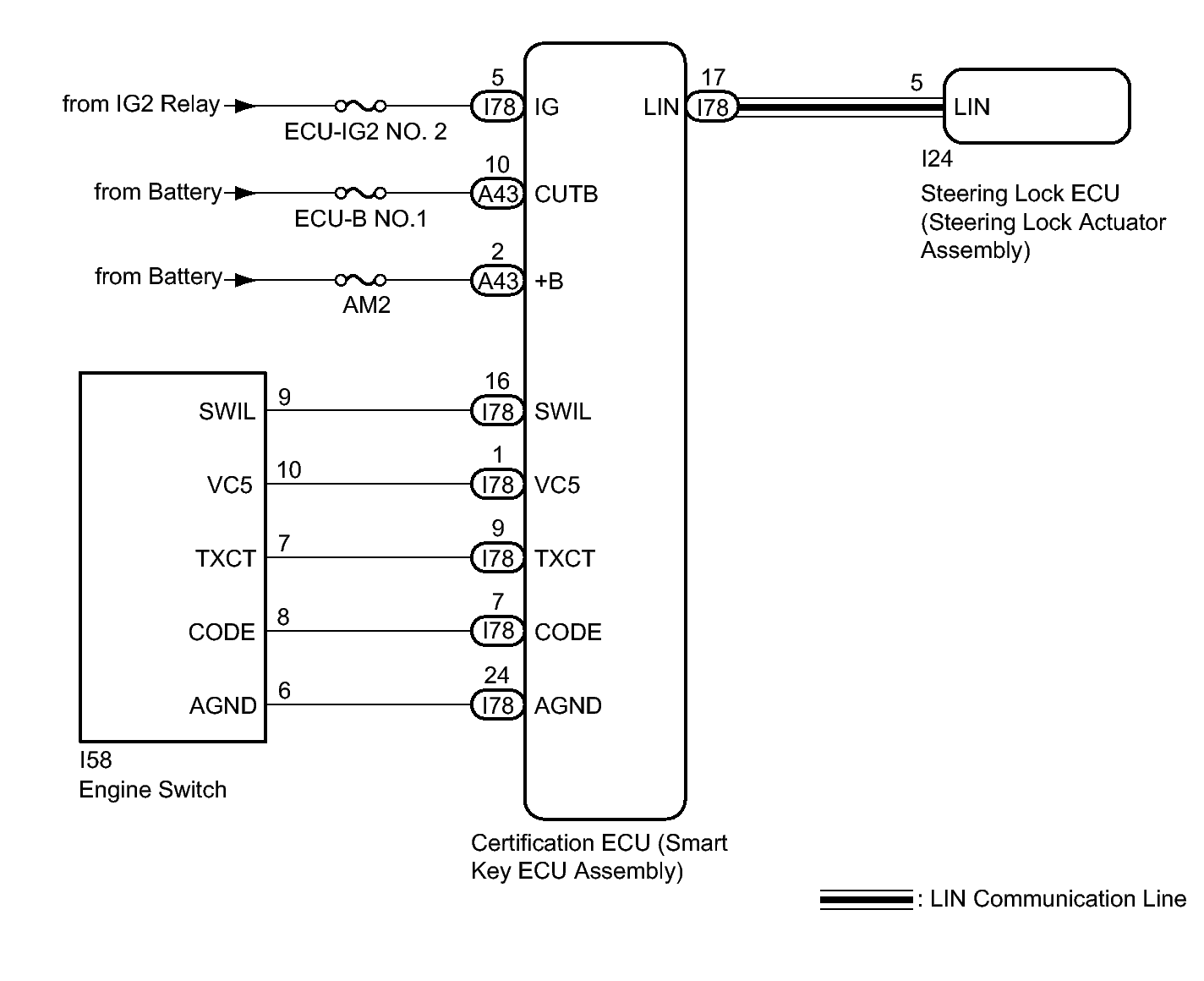

Fig 1: Electrical Key Transmitter Circuit - Wiring Diagram
GTY319349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
