System Diagram

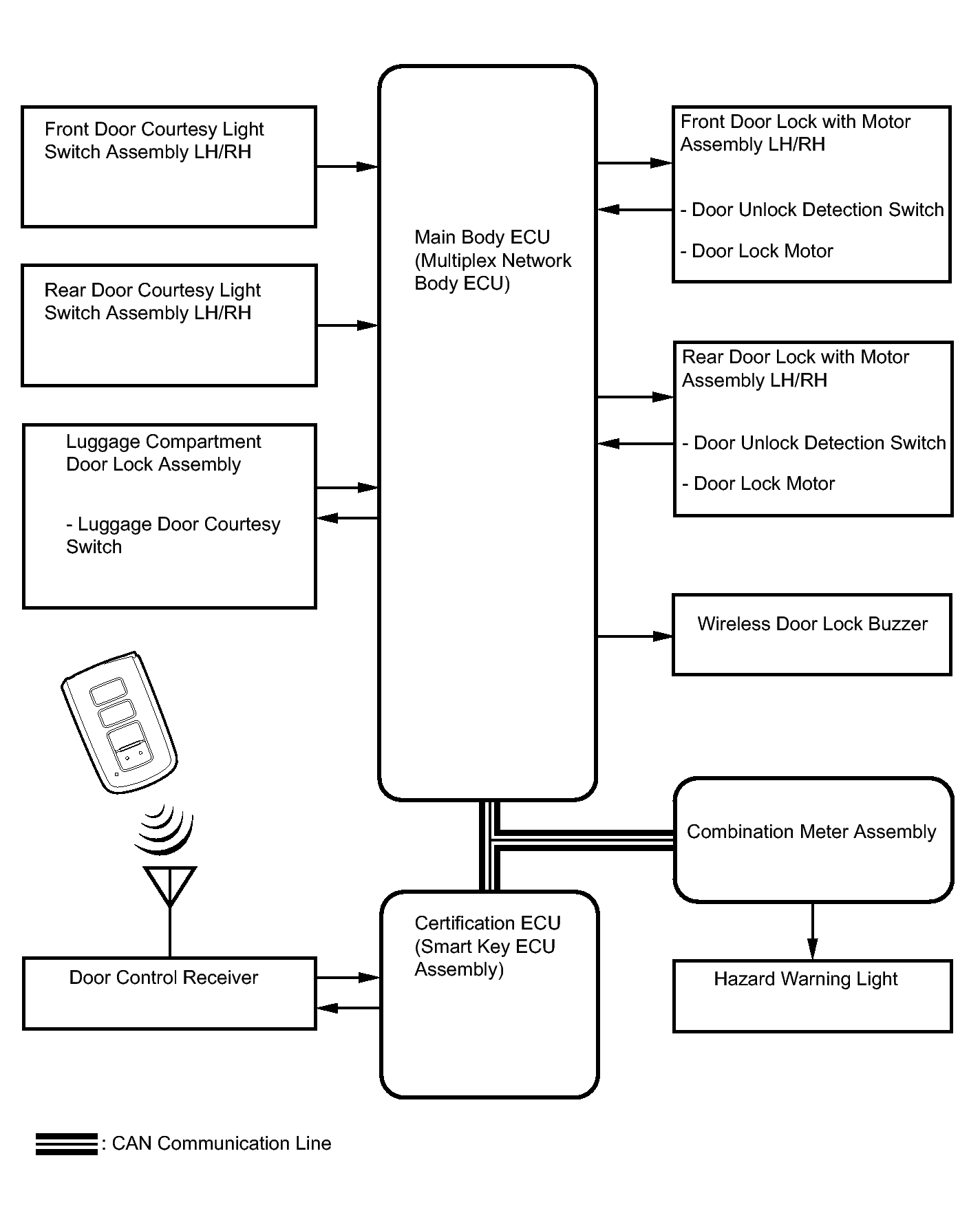

Fig 1: Wireless Door Lock Control System Diagram
GTY317807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU (Transmitter) Receiving ECU (Receiver) Signal Line
Certification ECU
(Smart Key ECU Assembly)		 Main Body ECU
(Multiplex Network Body ECU)
  • Wireless door lock/unlock signal
  • Wireless door lock buzzer sound request signal
 CAN
Main Body ECU
(Multiplex Network Body ECU)		 Combination Meter Assembly Wireless door lock hazard warning light request signal CAN
