Only Wireless Control Function is Inoperative: Wiring Diagram

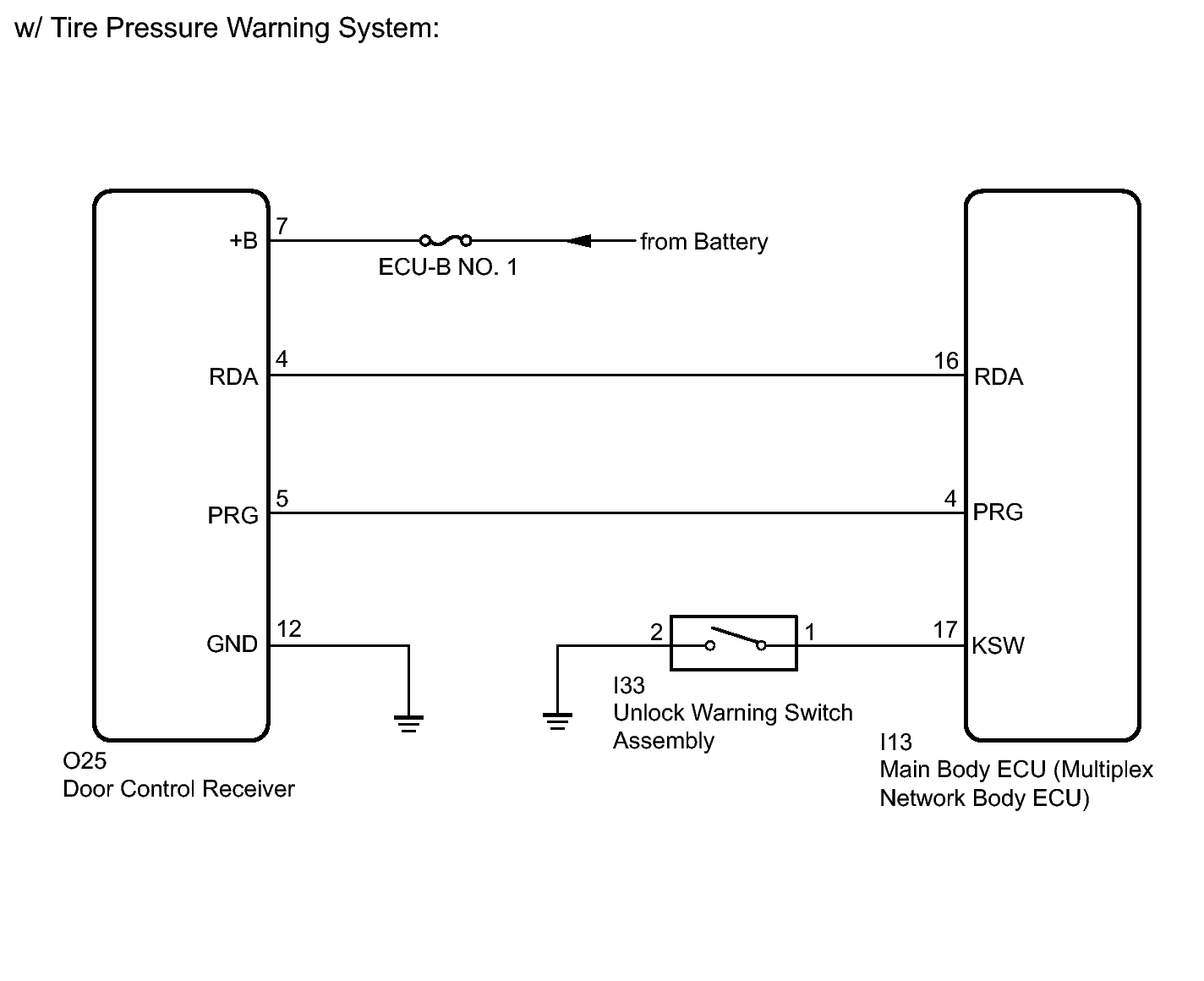

Fig 1: Door Control Receiver Circuit (w/ Tire Pressure Warning System) - Wiring Diagram
GTY320809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

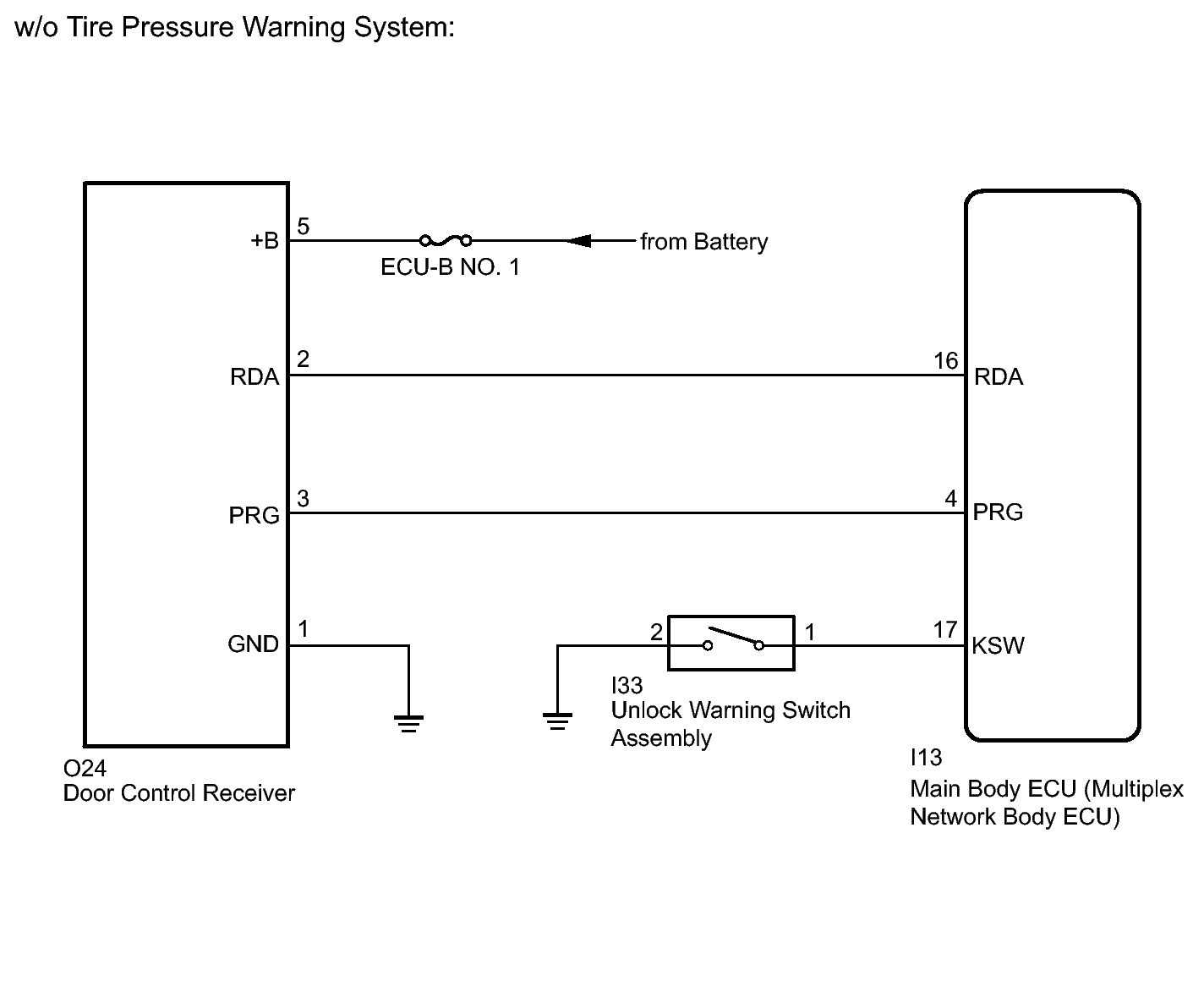

Fig 2: Door Control Receiver Circuit (w/o Tire Pressure Warning System) - Wiring Diagram
GTY321082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
