WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Smart Key System)
>>
System Diagram
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

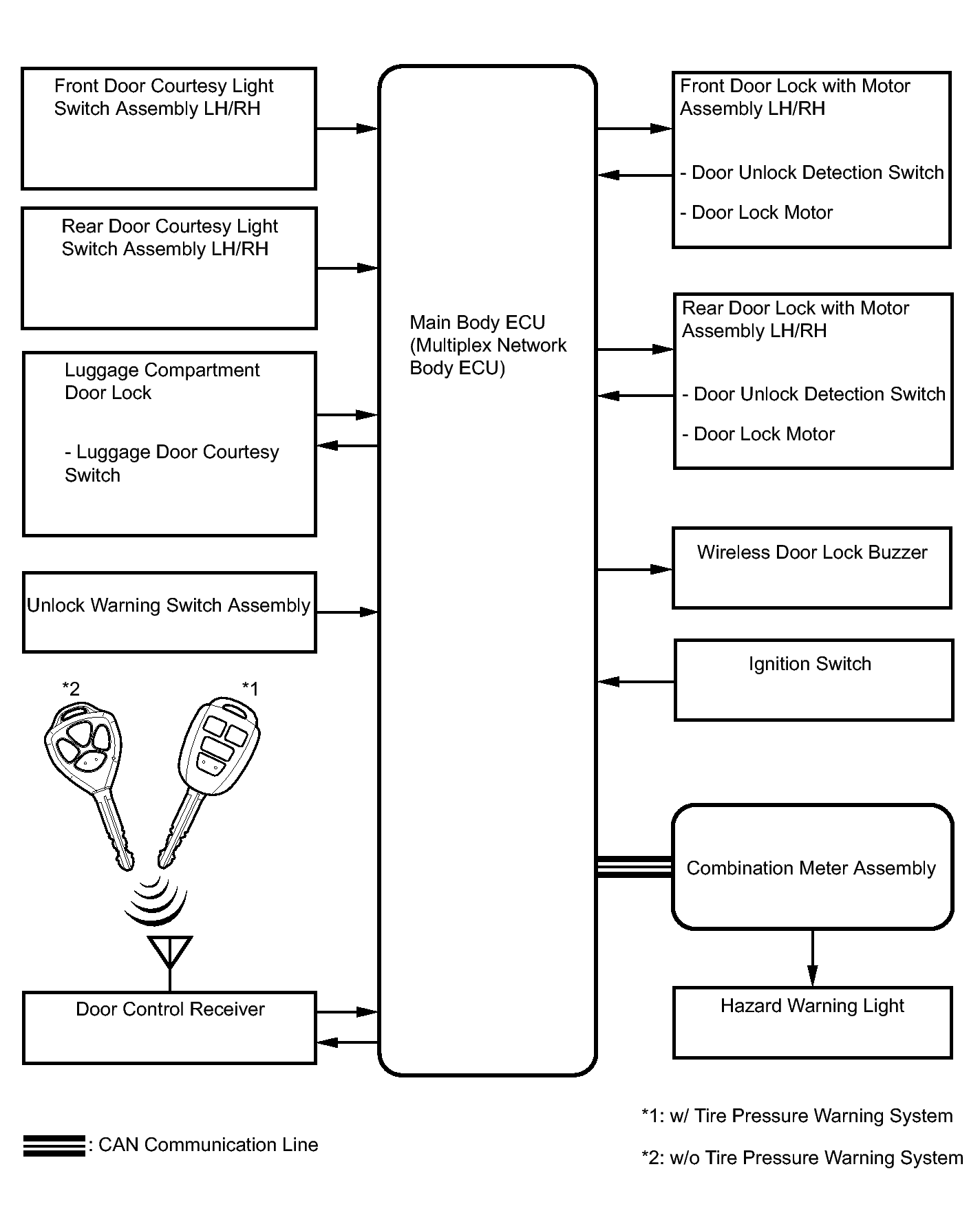

Fig 1: Wireless Door Lock Control System Diagram (w/o Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE
Transmitting ECU (Transmitter)
Receiving ECU (Receiver)
Signal
Line
Main body ECU
(Multiplex Network Body ECU)
Combination Meter Assembly
Wireless door lock hazard warning light request signal
CAN
