Headlight Leveling ECU Power Source Circuit: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / HL Auto Leveling / Data List.
5. Read the display on the Techstream.
   HL AUTO LEVELING



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   +B	IG power supply voltage value / 0 to 19.75 V	11 to 14 V	-

   OK

   Normal condition listed above is displayed.

NG → See step   2

OK → See step   4

1. Disconnect the A34 headlight leveling ECU assembly connector.

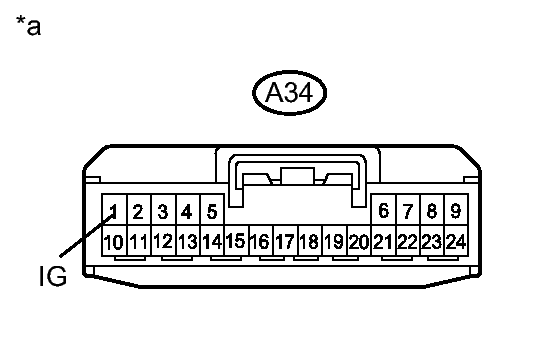

   Fig 1: Identifying A34 Headlight Leveling ECU Assembly Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   A34-1 (IG) - Body ground	Ignition switch ON	11 to 14 V
   A34-1 (IG) - Body ground	Ignition switch off	Below 1 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Headlight Leveling ECU Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A34-9 (E1) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   5
