Parts Location: Illustration

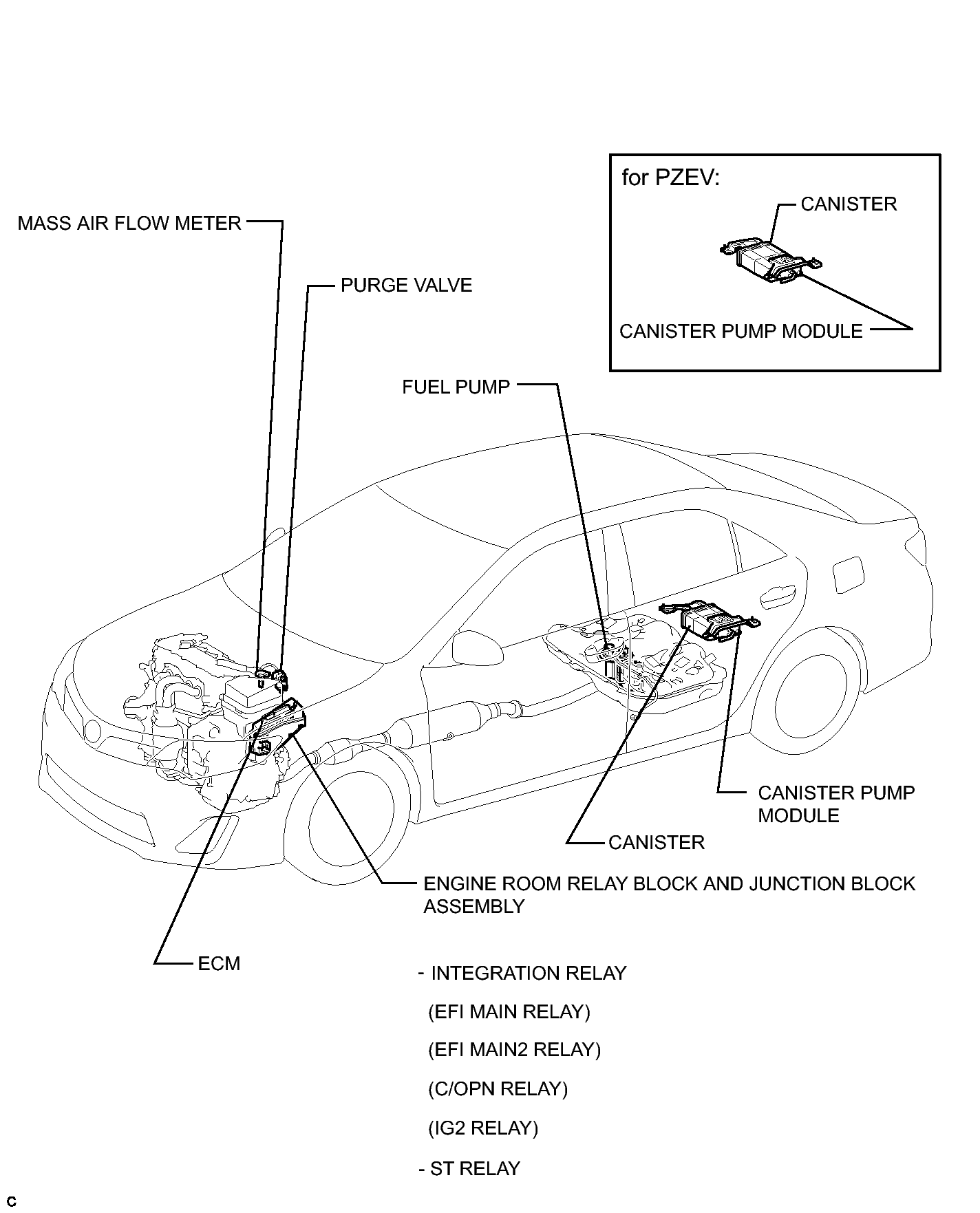

Fig 1: SFI System Components Location (1 Of 5)

GTY322521

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

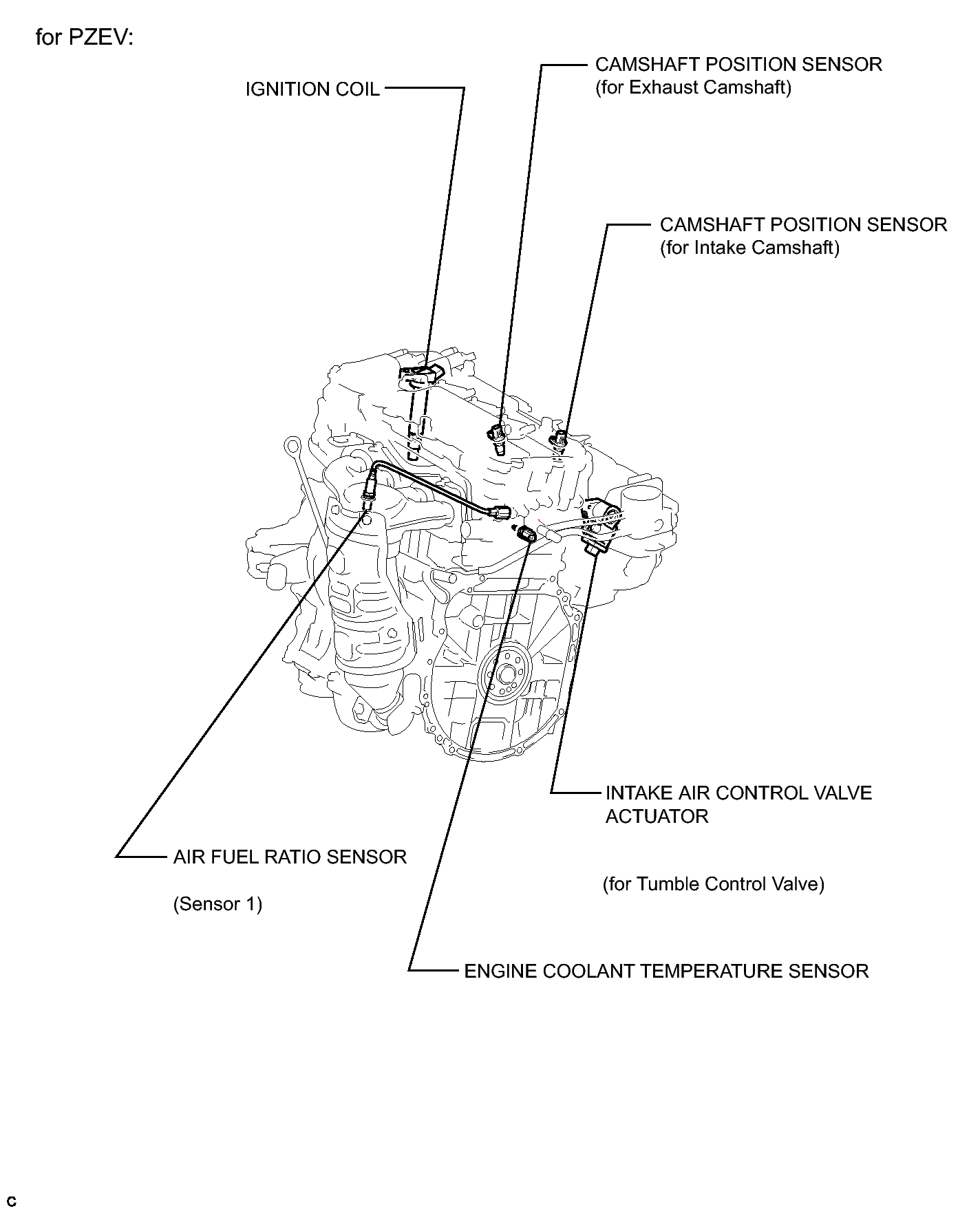

Fig 1: SFI System Components Location (2 Of 5)

GTY317529

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

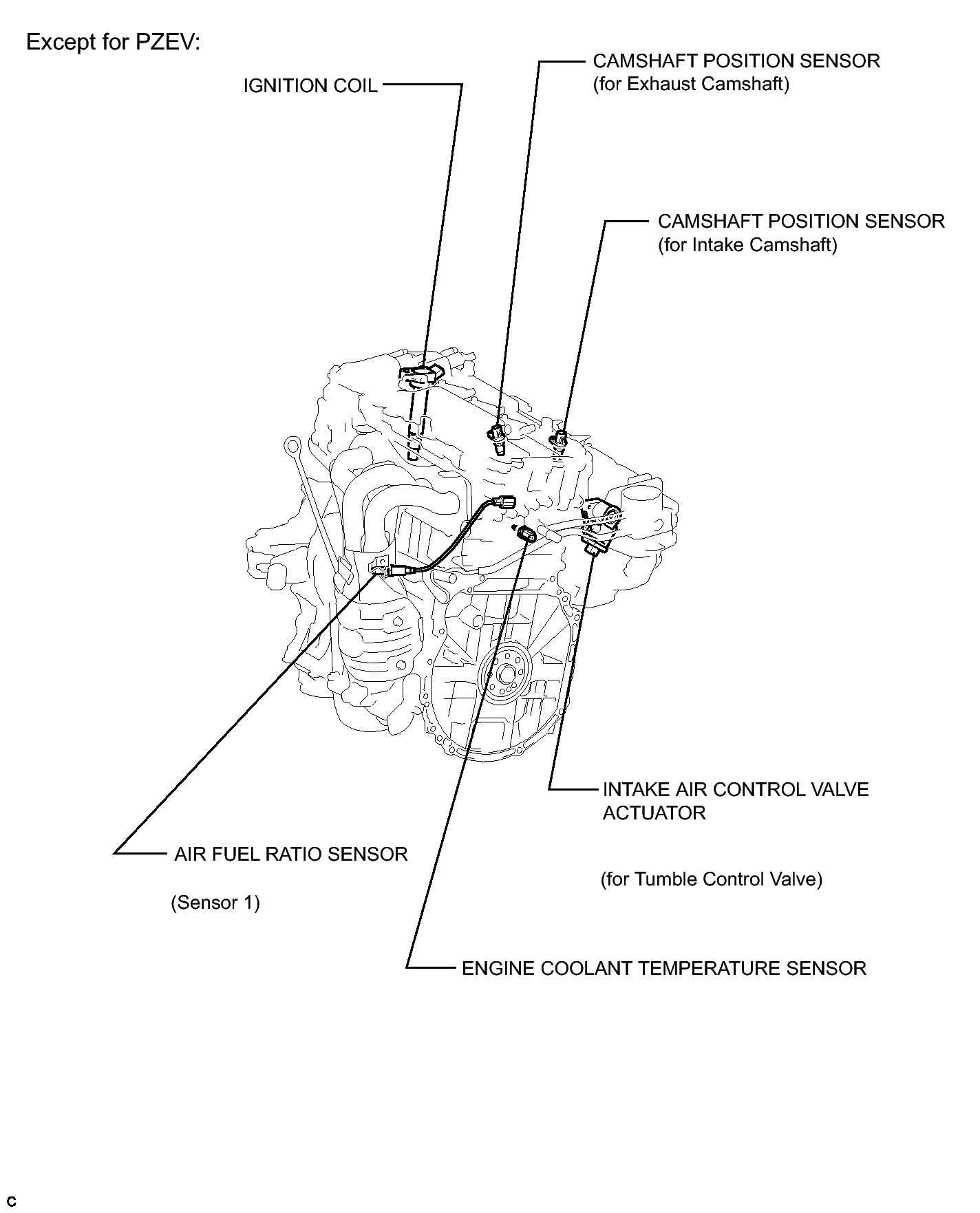

Fig 1: SFI System Components Location (3 Of 5)

GTY321469

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

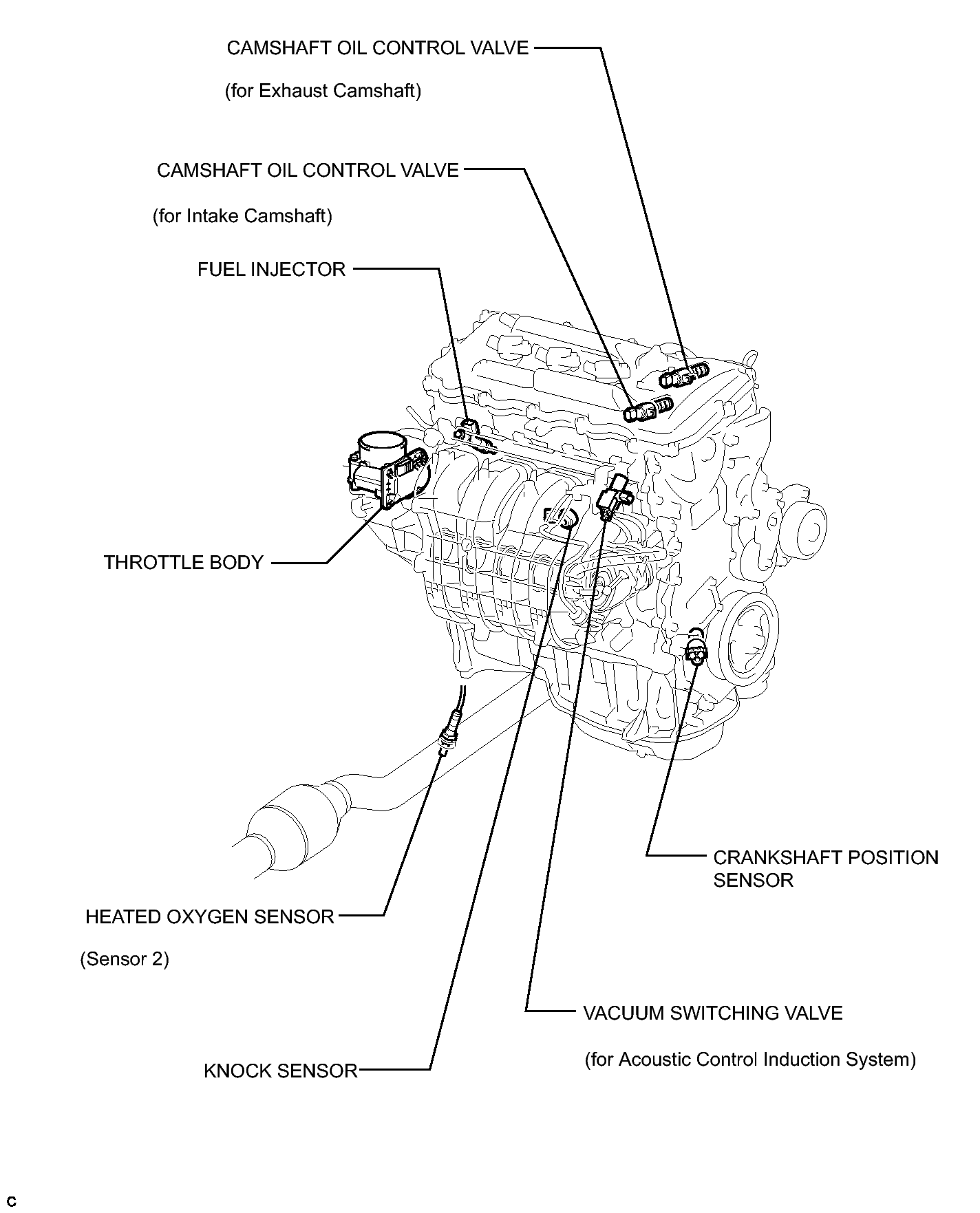

Fig 1: SFI System Components Location (4 Of 5)

GTY321158

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

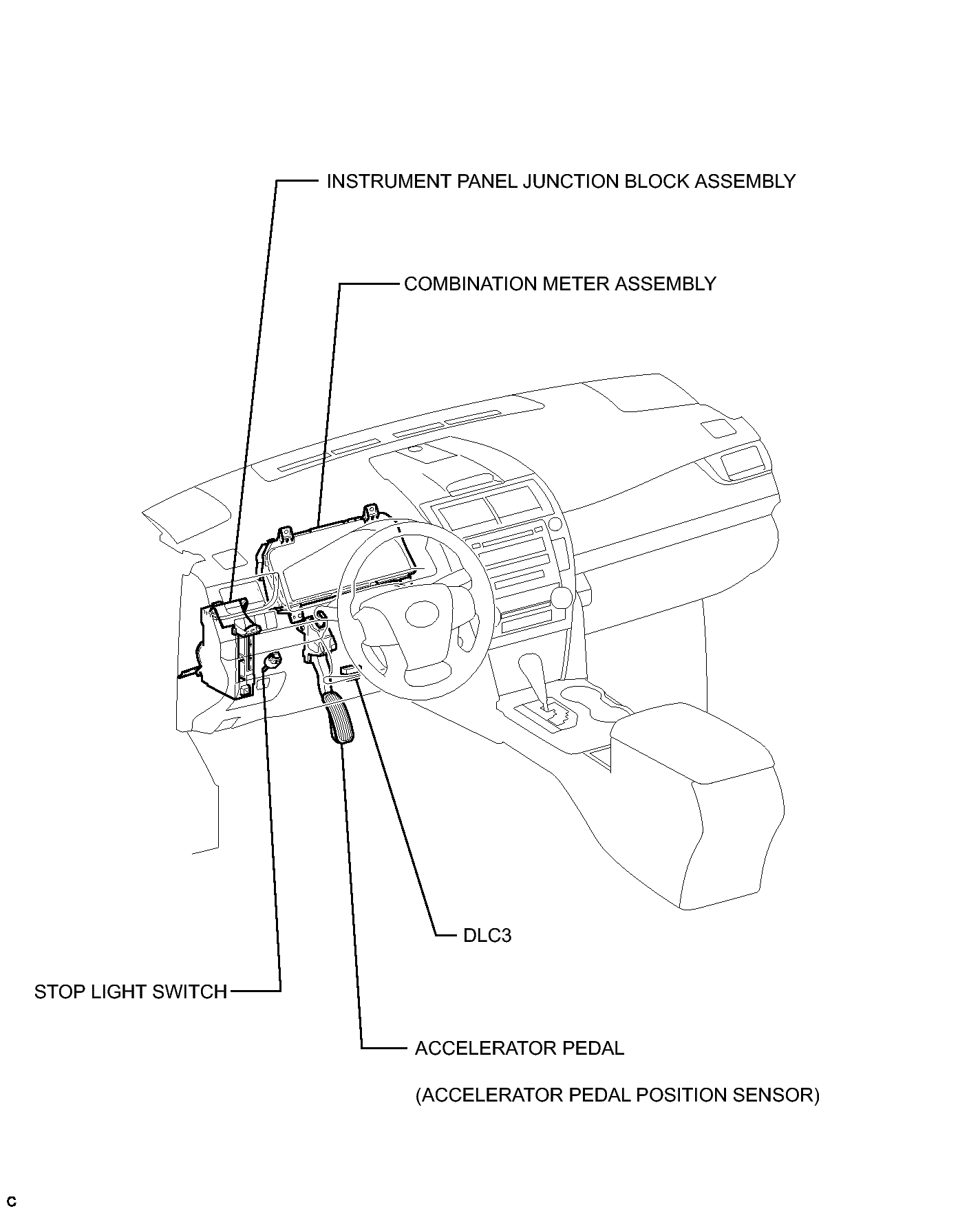

Fig 1: SFI System Components Location (5 Of 5)

GTY315407

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
