INSTALL CRANK POSITION SENSOR
1. Apply a light coat of engine oil to the O-ring on the crank position sensor.

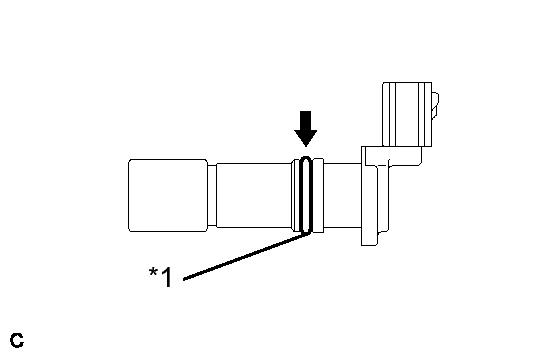

  Fig 1: Locating Crank Position Sensor O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 O-ring
2. Install the crank position sensor with the bolt.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
3. Connect the crank position sensor connector.
INSTALL COMPRESSOR AND MAGNETIC CLUTCH
1. Install the compressor and magnetic clutch. Refer to INSTALLATION .
