Section 41 (Smart Key System (For Entry Function) (Diagnostics - Introduction) (Hybrid))
>>
SMART KEY SYSTEM (for Entry Function)
>>
Parts Location
>>
Illustration
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Parts Location: Illustration
WARNING:
This page is about a different variant/trim than selected.

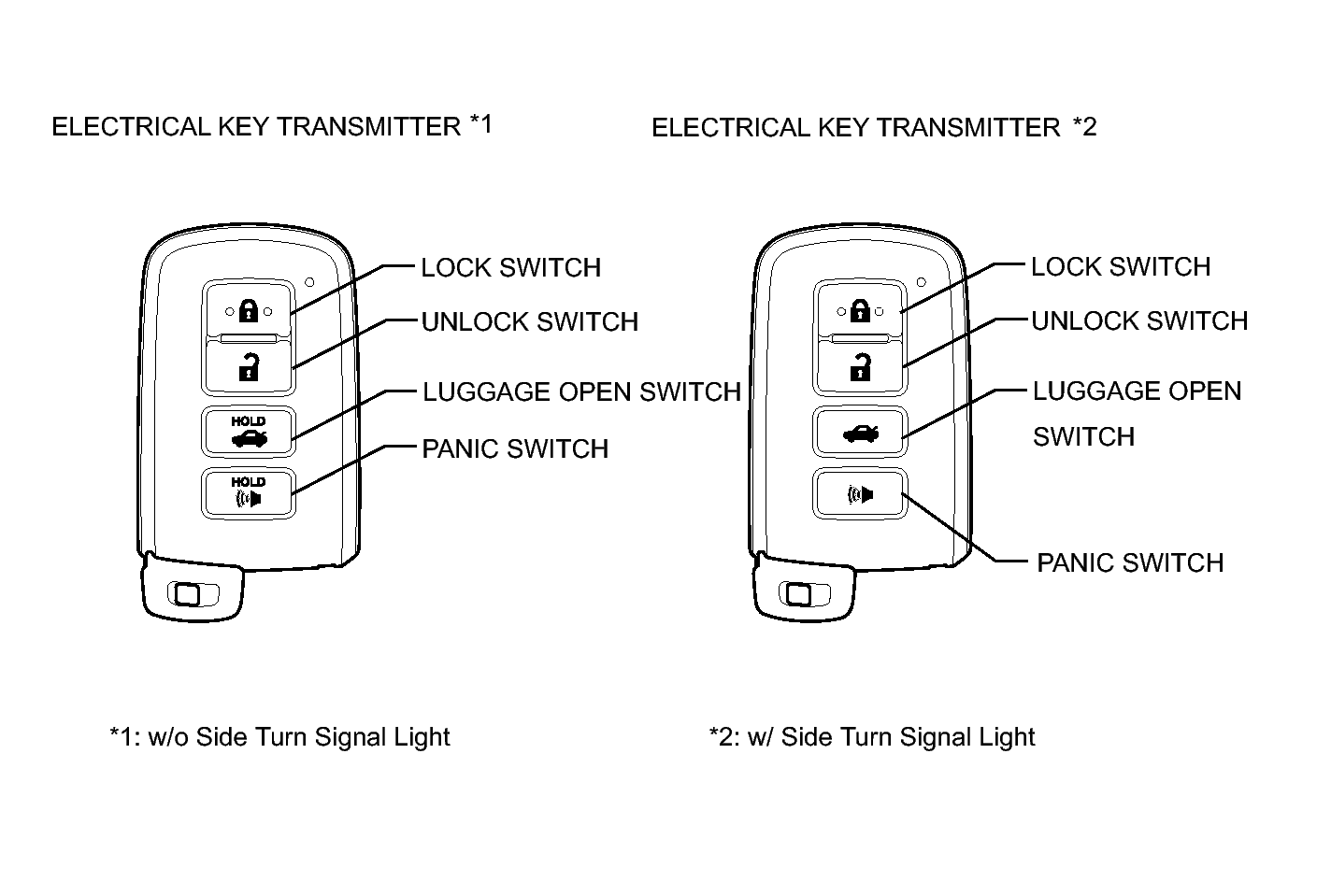

Fig 1: Identifying Smart Key System (For Entry Function) Components Location (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

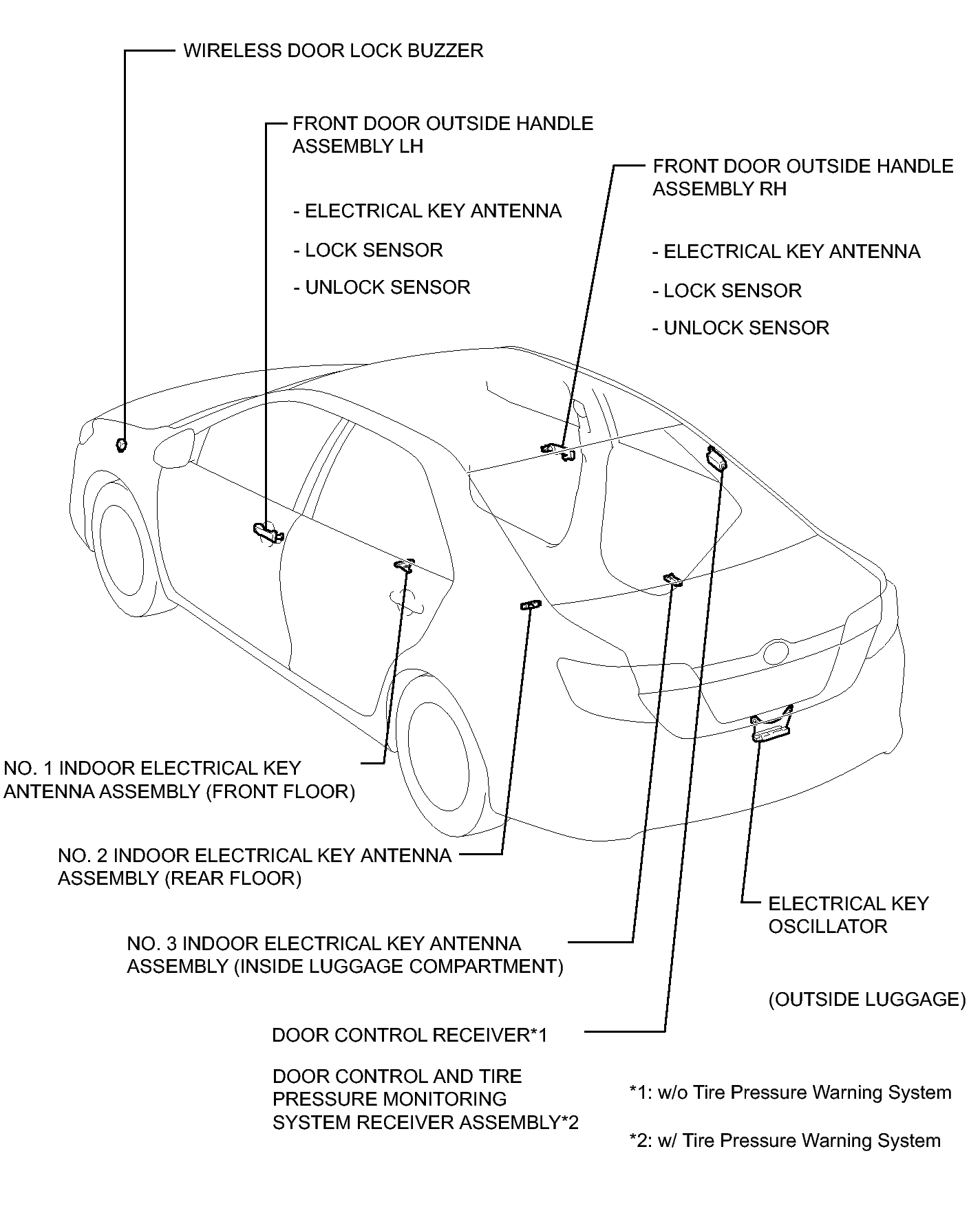

Fig 2: Identifying Smart Key System (For Entry Function) Components Location (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

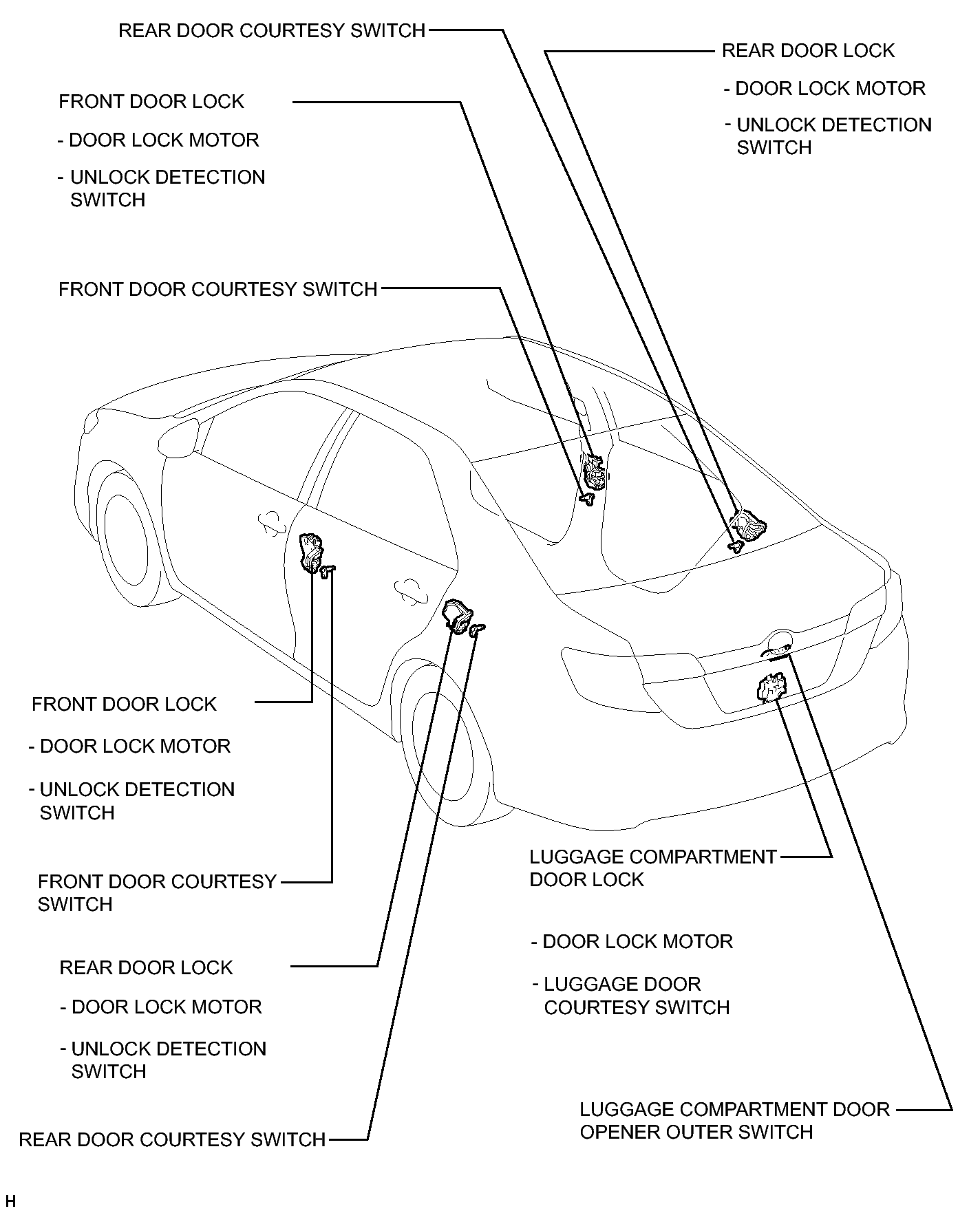

Fig 3: Identifying Smart Key System (For Entry Function) Components Location (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Smart Key System (For Entry Function) Components Location (4 Of 4)
