DOOR LOCK: WIRELESS DOOR LOCK BUZZER: INSTALLATION

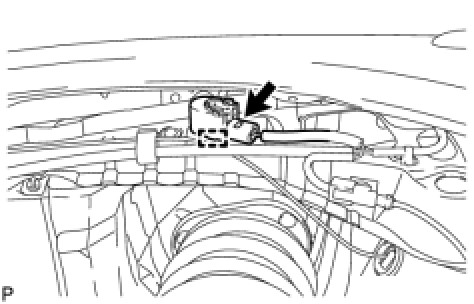

1. INSTALL WIRELESS DOOR LOCK BUZZER

(a) Connect the connector.





(b) Install the wireless door lock buzzer with the clamp.

2. INSTALL FRONT FENDER LINER Installation

3. INSTALL FRONT WHEEL

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)

4. INSTALL SIDE MUDGUARD Installation

5. INSTALL FRONT BUMPER ASSEMBLY Installation

6. INSTALL NO. 4 ENGINE UNDER COVER (for 2AZ-FE) Installation

7. INSTALL RADIATOR GRILLE PROTECTOR Installation

8. VEHICLE PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments

9. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments

10. INSPECT FOG LIGHT AIMING (w/ Fog Light) Adjustments

11. ADJUST FOG LIGHT AIMING (w/ Fog Light) Adjustments
