Installation

2ZR-FE STARTING: IGNITION SWITCH: INSTALLATION

1. INSTALL IGNITION SWITCH ASSEMBLY

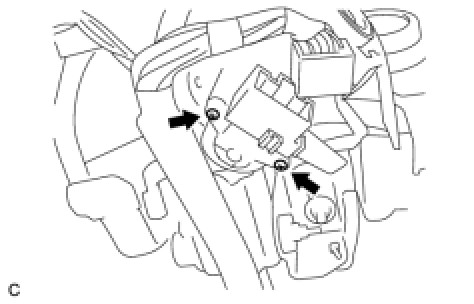

(a) Install the ignition switch with the 2 screws.





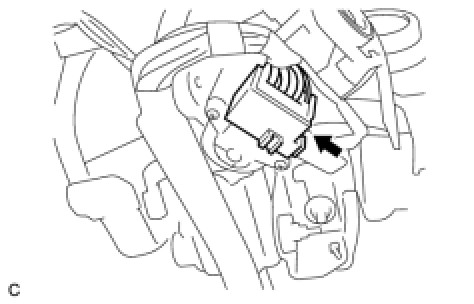

(b) Connect the connector.





2. INSTALL UPPER STEERING COLUMN COVER Installation

3. INSTALL LOWER STEERING COLUMN COVER Installation

4. ADJUST SPIRAL CABLE Installation

5. INSTALL STEERING WHEEL ASSEMBLY

Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Installation

7. INSPECT STEERING PAD Installation

8. INSPECT SRS WARNING LIGHT

Diagnosis System
