Engine Switch

2ZR-FE STARTING: ENGINE SWITCH: INSPECTION

1. INSPECT ENGINE SWITCH

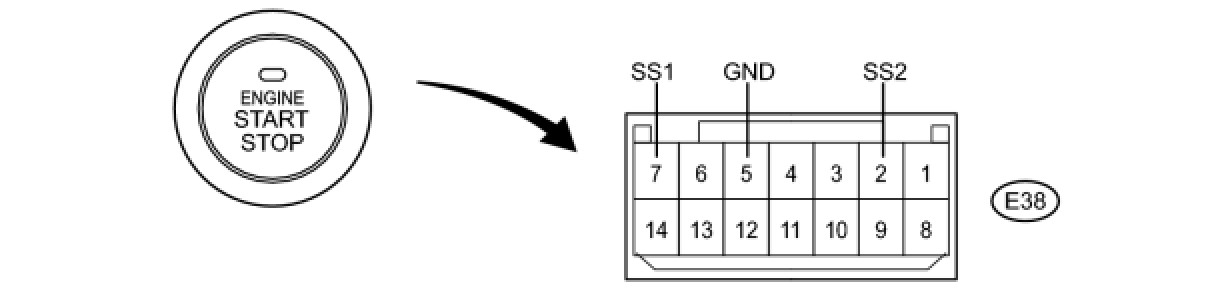

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the engine switch.

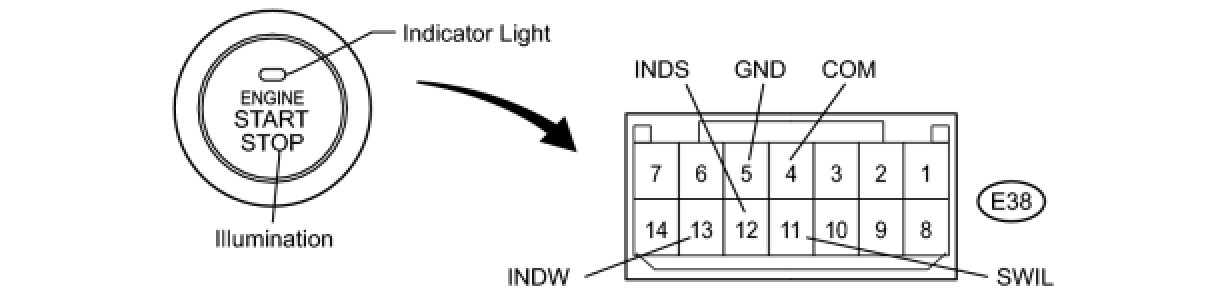

(b) Apply battery voltage between the terminals of the switch and check the illumination condition of the switch.





OK:





NOTICE:
* If the positive (+) lead and the negative (-) lead are incorrectly connected, the engine switch indicator light will not illuminate.
* If the voltage is too low, the indicator light will not illuminate.

If the result is not as specified, replace the engine switch.
