FJ Cruiser 4WD, Automatic T/Case Control
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System (Inspection)
>>
Charging System
>>
System Diagram
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

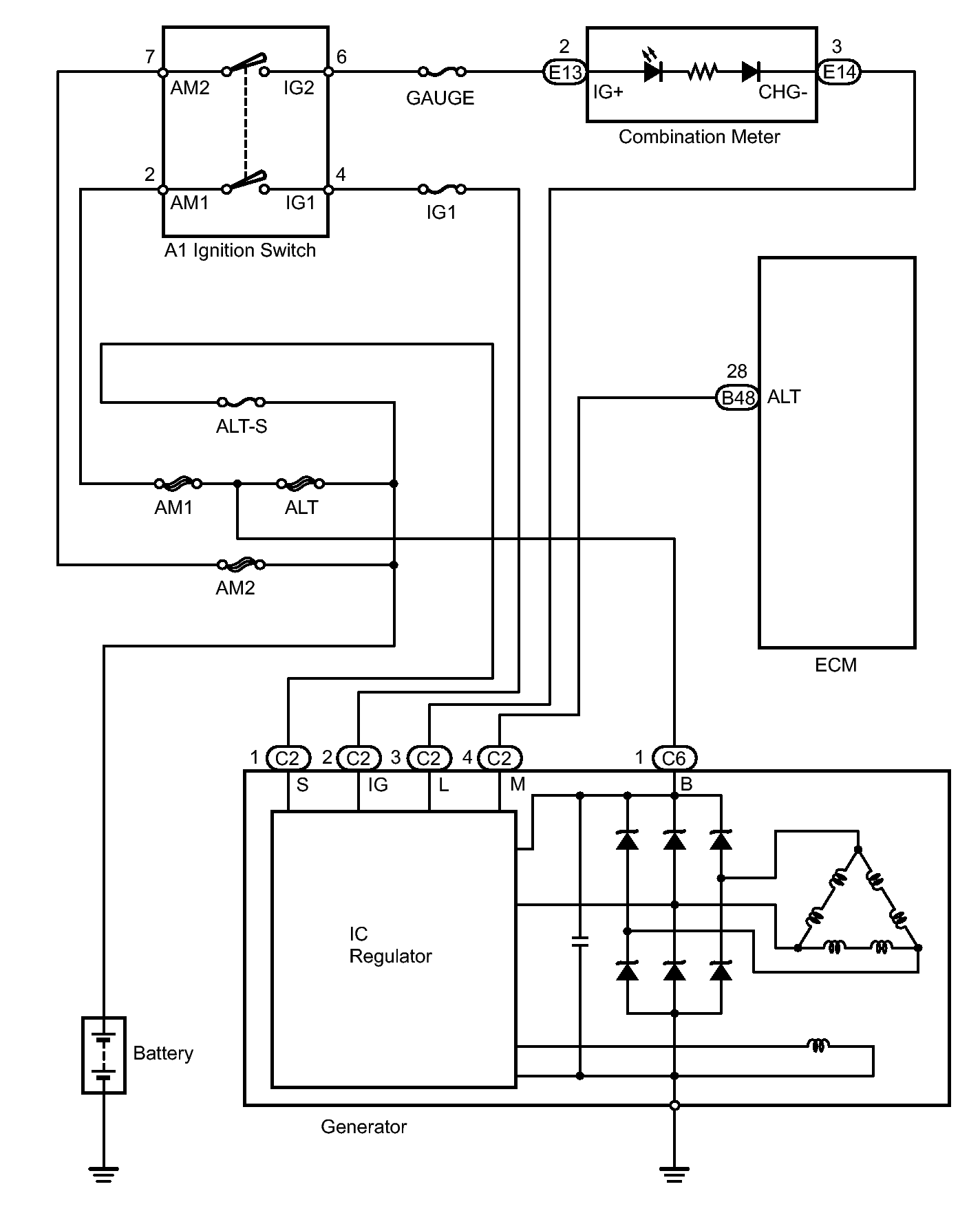

Fig 1: Charging System - Circuit Diagram
