Front Passenger Airbag Assembly: Installation: Installation

PRECAUTION
WARNING:
Read "PRECAUTION" thoroughly before servicing. Refer to PRECAUTION .
INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
1. Engage the 5 hooks.

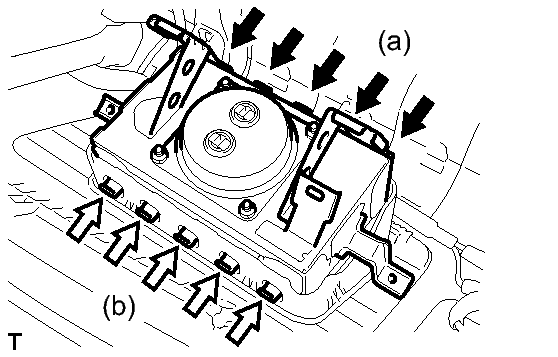

  Fig 1: Identifying Front Passenger Airbag Assembly Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 5 hooks and install the front passenger airbag assembly onto the instrument panel.
3. Install the 2 screws.

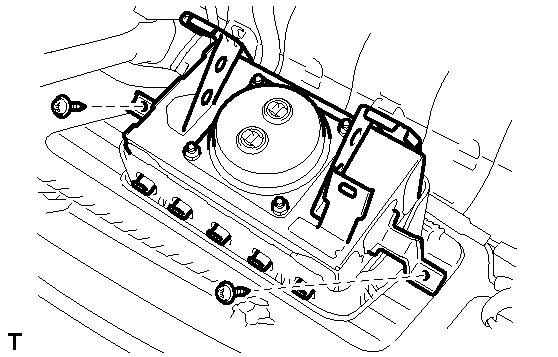

  Fig 2: Identifying Front Passenger Airbag Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DEFROSTER NOZZLE ASSEMBLY . Refer to INSTALLATION - Step 8
INSTALL NO. 1 SIDE DEFROSTER NOZZLE DUCT . Refer to INSTALLATION - Step 9
CONNECT INSTRUMENT PANEL WIRE ASSEMBLY
1. Install the 3 clamps.

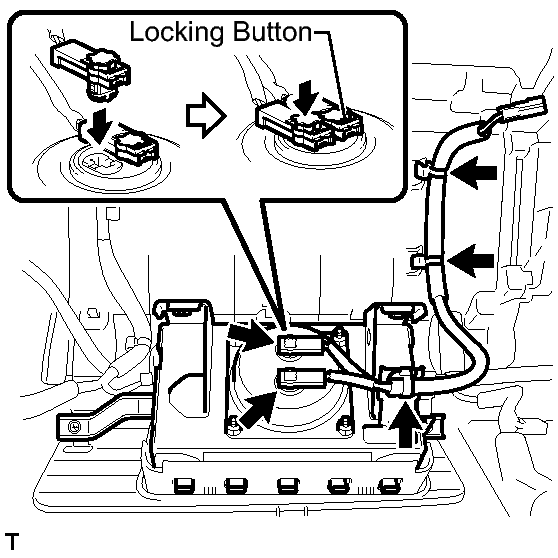

  Fig 3: Identifying Instrument Panel Wire Assembly Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 connectors to the front passenger airbag assembly.
  NOTE:
  When handling the airbag connector, take care not to damage the airbag wire harness.
INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
HINT:

Refer to the procedures from "INSTALL INSTRUMENT PANEL SUB-ASSEMBLY". Refer to INSTALLATION .
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
PERFORM INITIALIZATION
1. Perform initialization. Refer to INITIALIZATION .
  HINT:

  Some systems need initialization after reconnecting the cable to the negative battery terminal.
INSPECT SRS WARNING LIGHT
1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM .
