Yaw Rate Sensor Communication Stop Mode: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

    NEXT: Go to next step

  2. CHECK FOR OPEN IN CAN BUS WIRE (YAW RATE SENSOR BRANCH WIRE)
    1. Turn the ignition switch off.

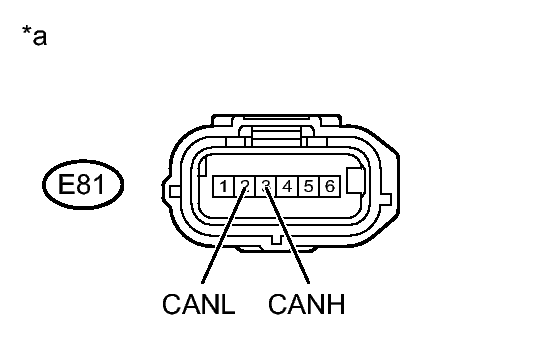

      Fig 1: Checking CAN Bus Wires (YAW Rate Sensor)
      GTY308693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the E81 yaw rate sensor connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      E81-3 (CANH) - E81-2 (CANL) Ignition switch off 54 to 69 Ω
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Yaw Rate Sensor)

    NG → REPAIR OR REPLACE CAN BRANCH WIRE OR CONNECTOR (CAN-H, CAN-L)

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (YAW RATE SENSOR - BATTERY AND BODY GROUND)
    1. Connect the cable to the negative (-) battery terminal.
      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

    2. Measure the resistance according to the value(s) in the table below.

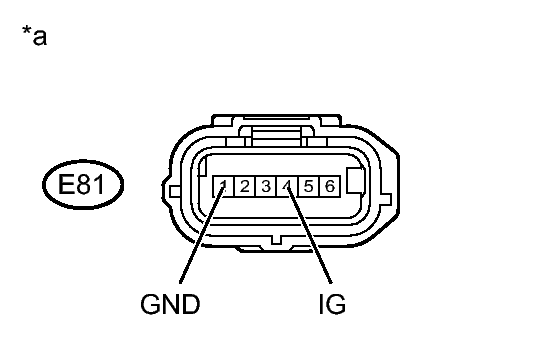

      Fig 2: Checking Yaw Rate Sensor E81 Connector Terminals
      GTY308653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      E81-1 (GND) - Body ground Always Below 1 Ω
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      E81-4 (IG) - Body ground Ignition switch ON 11 to 14 V
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Yaw Rate Sensor)

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   4

  4. REPLACE YAW RATE SENSOR. Refer to  REMOVAL
