Yaw Rate Sensor Communication Stop Mode: Wiring Diagram

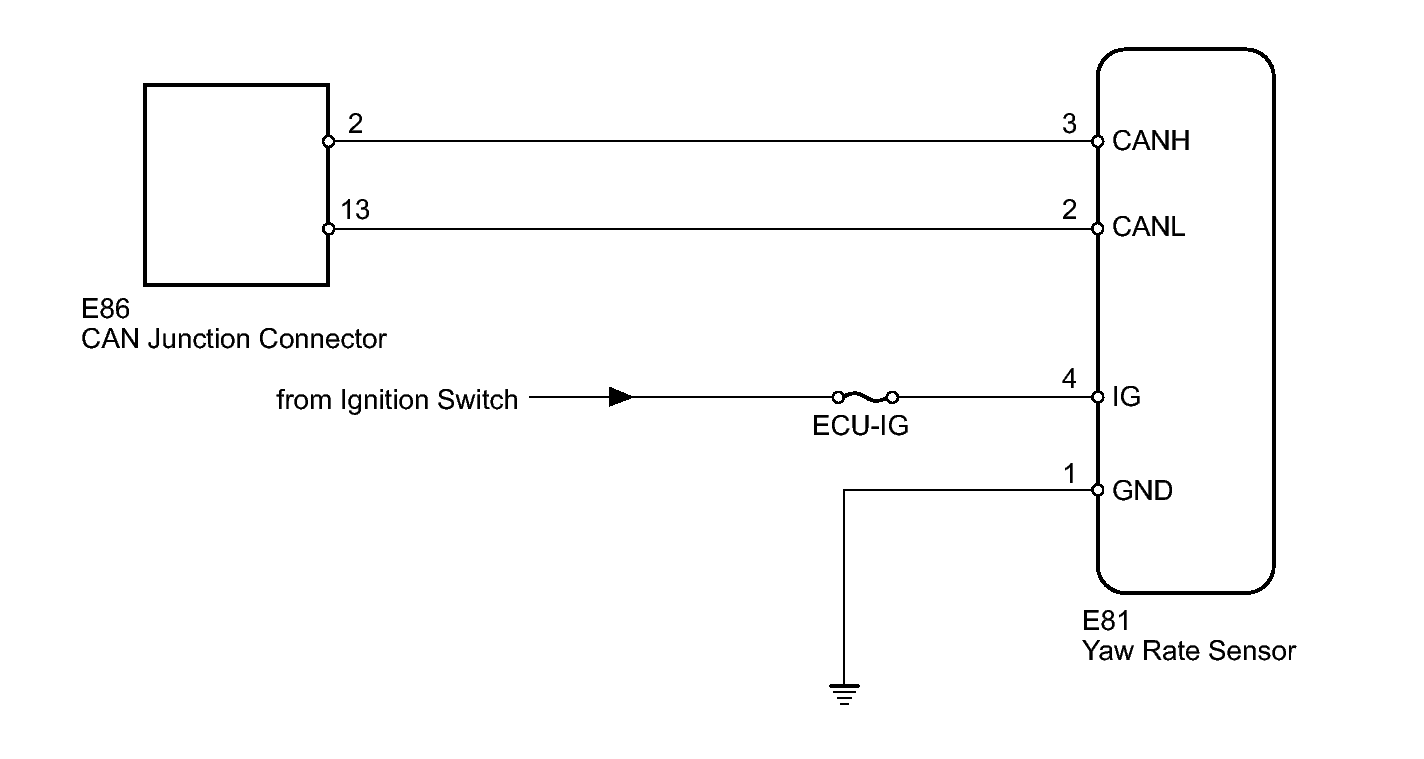

Fig 1: Yaw Rate Sensor - Wiring Diagram
GTY309012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
