Front Passenger Side Power Window Switch: Installation: Installation

  1. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY
    1. Engage the 2 claws and install the power window regulator switch assembly.

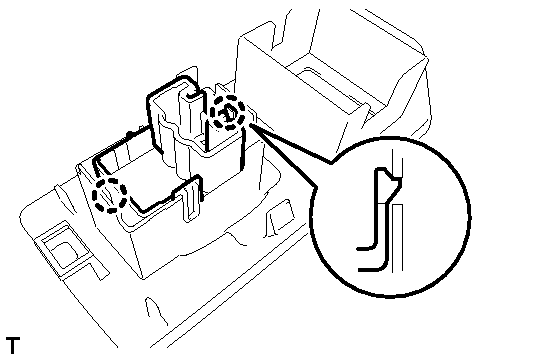

      Fig 1: Identifying Claws To Install Power Window Regulator Switch Assembly
      GTY314823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT ARMREST BASE UPPER PANEL  . Refer to REASSEMBLY - Step 28
