Multiplex Communication System (CAN): Notes

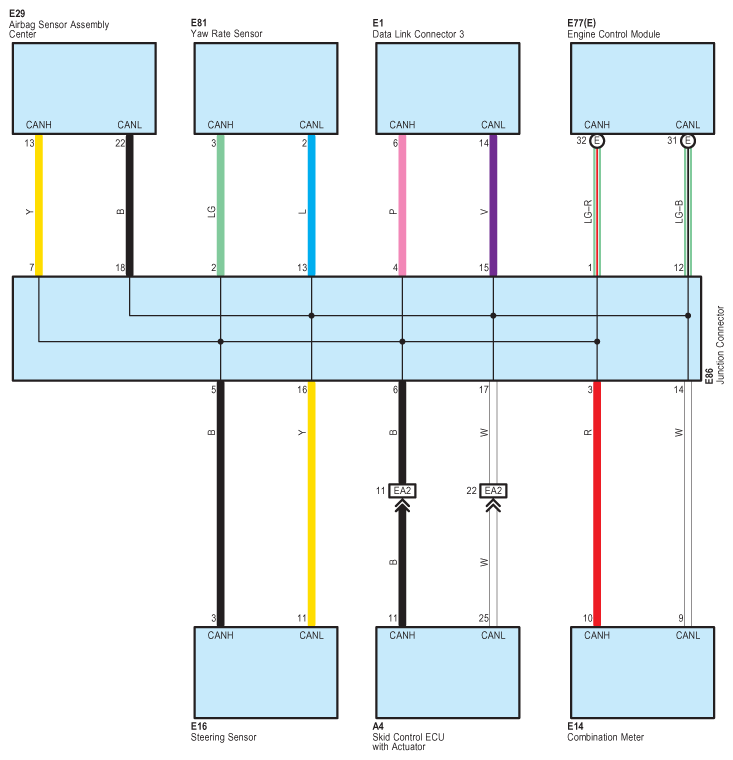

Fig 1: Multiplex Communication System (CAN) Wiring Diagram
G08843547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
