Rear Window Defogger: Notes

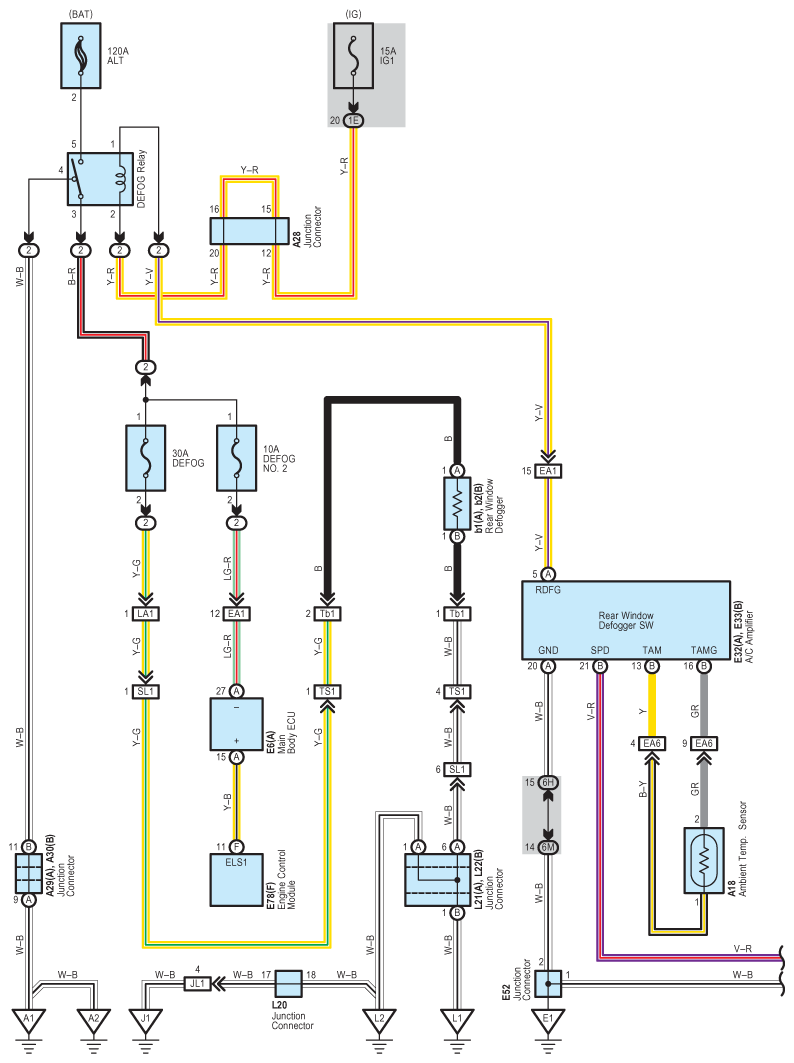

Fig 1: Rear Window Defogger System Wiring Diagram (1 Of 2)
G08843636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Rear Window Defogger System Wiring Diagram (2 Of 2)
G08843637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
