Back Window Lock: Installation: Installation

INSTALL BACK WINDOW LOCK
1. Install the back window lock with the 3 bolts.

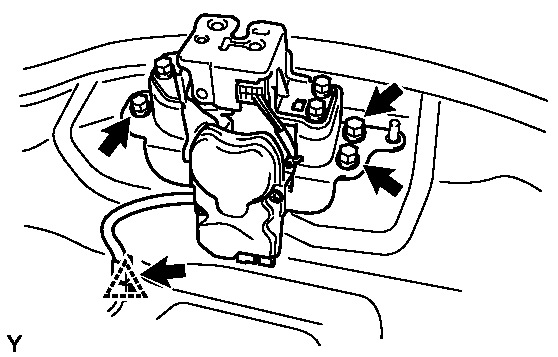

  Fig 1: Identifying Back Window Lock Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
2. Connect the connector and clamp.
INSTALL BACK DOOR SERVICE HOLE COVER . Refer to REASSEMBLY - Step 32
INSTALL BACK DOOR TRIM BOARD . Refer to REASSEMBLY - Step 33
INSTALL DOOR TRIM RETAINER CAP . Refer to REASSEMBLY - Step 34
INSTALL BACK DOOR TRIM COVER RH . Refer to REASSEMBLY - Step 35
INSTALL BACK DOOR TRIM COVER LH
HINT:

Use the same procedure as for the RH side.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
