VSC Off Switch: Installation: Installation

  1. INSTALL VSC OFF SWITCH
    1. Attach the 2 claws to install the VSC off switch.

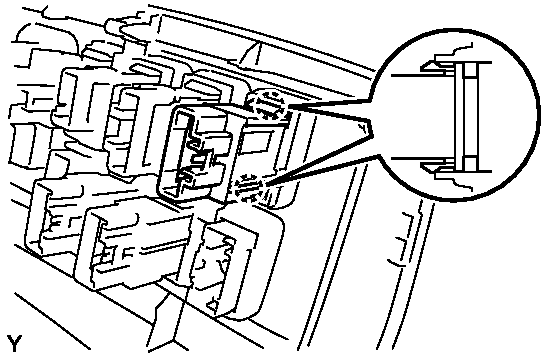

      Fig 1: Identifying VSC Off Switch, Connector & Claws
      GTY181955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the VSC off switch connector.
  2. INSTALL INSTRUMENT LOWER COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 36
  3. INSTALL FRONT CONSOLE BOX  . Refer to INSTALLATION - Step 38
  4. INSTALL BOX BOTTOM MAT  . Refer to INSTALLATION - Step 39
  5. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 40
  6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for 4WD)  . Refer to INSTALLATION - Step 41
  7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)  . Refer to INSTALLATION - Step 42
  8. INSTALL PARKING BRAKE HOLE COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 43
